Shaft copying systems

Absolute positioning of the elevator car for travel heights up to 392 m.

The contactless absolute measuring system for shaft copying – also called shaft information or positioning system – has an extremely compact, very robust design. In addition to the sensor, which detects the position of the elevator car 100% slip-free, it also includes the appropriate evaluation unit, a so-called Position Supervisor Unit (PSU). The safe system therefore consists of a SIL3-certified sensor and a suitable evaluation unit. This enables elevator and safety functions to be implemented in accordance with EN 81-20/21/50.

Safe, precise, robust

Travel height up to 392 m
Safety: SIL3 certified
Dynamic: Travel speed up to 12 m/s
Precision: Resolution up to 0,5 mm
Direct: Absolute positioning

Go to Product Finder

Shaft copying systems

Absolute positioning of the elevator car for travel heights up to 392 m.

Reliable determination of position and speed values

Kübler offers various sensors for this purpose. The Ants LEB02 serves as a classic shaft copying system for precise positioning of the lift car. The SIL3-certified Ants LES02 and Ants LES03 sensors can also be combined with various evaluation units from Kübler. The sensors from Kübler are particularly characterised by their compact and robust design.

Ants Base

Absolute position acquisition
100 % slip-free
Extremely robust and compact
Easy installation
Contactless measuring principle
Various interfaces

To the Ants LEB02

Schachtkopiersystem Ants Safe: SIL3-zertifiziert, Absolute Positionserfassung, 100 % schlupffrei, Extrem robust und kompakt, einfache Installation, Berührungsloses Messprinzip

Safe position detection

ASME17-certified
Absolute position detection
100 % slip-free
Extremely robust and compact

To the Ants LES02D

Ants Safe

SIL3-certified
Absolute position acquisition
100% slip-free
Extremely robust and compact
Easy installation
Contactless measuring principle

To the Ants LES02

Shaft copying system Ants Safe: SIL3-certified, Absolute position detection, 100 % slip-free, Extremely robust and compact, Easy installation, Non-contact measuring principle

Detecting the overspeed

Electronic speed limiter
Easy teach-in of the nominal speed
Can be combined with SGT02 and PSU02

To the LES03

Evaluation units - safe processing of position and speed values

In addition to sensors for safe position and speed detection, Kübler also offers the corresponding evaluation units.

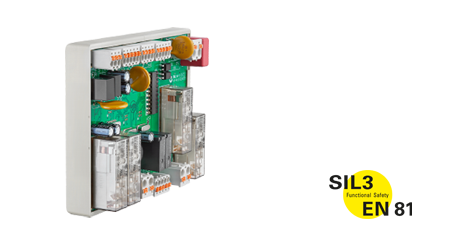

Realization of safety functions

SIL3-certified
Opening the safety circuit in case of an error
Realization of elevator and safety functions according to EN 81-20/21/50 (without triggering of safety gear)
Simplest start-up thanks to Smart Teaching
Combinable with LES02 or LES03 + SGT02

To the PSU02

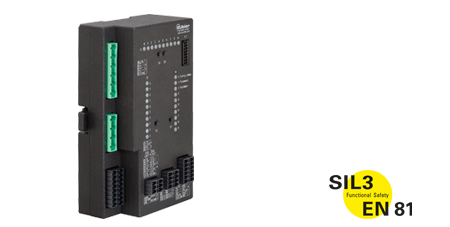

Triggering and monitoring the safety gears

SIL3-certified
Safe processing of position and speed data
Electronic overspeed governor in combination with LES03

To the SGT02

Safe systems - realization of safety functions

By combining sensor and evaluation unit, safety functions can be implemented in accordance with EN 81-20/21/50. Kübler Safe Systems therefore make a significant contribution to the digitalization of elevator systems. Numerous mechanical components such as limit switches or even the classic overspeed governor can be eliminated. This saves space, time and costs.

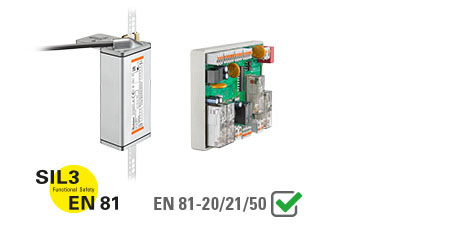

Shaft copying systems / Elevator Landing system Safe System: SIL3-certified sensors with suitable evaluation unit or position supervisor unit for implementing elevator and safety functions.

Safety functions according to
EN 81-20/21/50

Digitization of elevator systems
Reduced number of mechanical components
Minimization of installation and maintenance times
Simplest start-up thanks to Smart Teaching

To the Safe System LES02 / PSU02

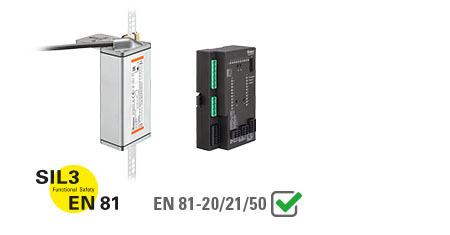

Shaft copying system Safe System: SIL3-certified sensor technology with suitable evaluation unit or Position Supervisor Unit for the realization of elevator and safety functions.

Electronic overspeed governor

Overspeed monitoring
Triggering of the electromechanical safety gear
Status monitoring and resetting of the safety gear
Shield mode for the establishment of refuge spaces

To the Safe System LES03 / SGT02

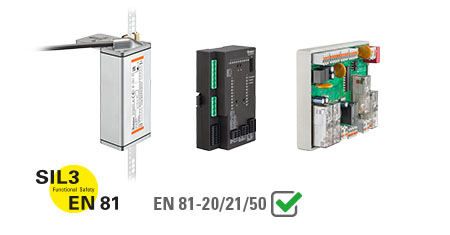

Safety functions with electronic overspeed governor

Digitization of elevator systems
Elimination of numerous mechanical components
Triggering of the electromechanical safety gear
Shield mode for the establishment of refuge spaces

To the Safe System LES03 / SGT02 / PSU02

Under construction:
All-In-One concept
Safe-System LES03 / PSU03

Additional safety functions can be implemented
Integrated triggering of the electromechanical safety gear
Numerous additional features
Reduced cabling effort

Simple parameterization of the PSU02 evaluation unit

Concept Study: Easy teaching of the evaluation unit via smartphone

With Concept Study Smart Teaching, the evaluation unit PSU02 is teached in via smartphone using an intuitive web interface.

To the Concept Study STU02

Saves time and costs

One of Kübler's unique selling points is its ease of mounting. Using carabiners, the stainless steel band can easily be attached to the respective mounting set via "plug & play". In the shaft pit, the belt is pretensioned by a spring. The essential installation instructions are available both on the strip packaging and directly on the sensor. No more tedious scrolling through user manuals or searching in PDF files.

Reliable and durable

The robust stainless steel band with its rounded edges is mounted directly to the guide rails using a mounting set. It can neither be influenced by temperature fluctuations nor by magnetic influences during mounting, such as the use of magnetized screwdrivers. The code is punched into the stainless steel strip. As a result, Kübler dispenses with additional gluing processes and thus ensures maximum robustness of the strip in the application.

Precise positioning

Loss of absolute position or correction of position by reference switches (magnetic vanes) is a thing of the past. With Kübler's shaft copying, the position of the elevator car can be determined 100% slip-free. The sensor is mounted directly on the elevator car and can directly determine the absolute position without additional reference markers in the shaft. Slippage of the cable at the drive has no effect on the measuring result. The sensor system is an absolute value system which can record a unique absolute position value at any point of the code band.

Reduce total costs

With the SIL3 certified Position Supervisor Unit (PSU), evaluation unit, or Safe Box, elevator and safety functions can be realized in accordance with EN 81-20/21/50. These include emergency limit switches, UCM (Unintended Car Movement), inspection limit switches, overspeed inspection, or door bypass. Kübler's safe system allows numerous existing components in the elevator shaft to be eliminated, such as limit switches, magnetic vanes, reference switches, or door zone magnets. In addition to procurement costs, this saves installation and maintenance time.
