INDUSTRIES Bottling Plants

Slip rings for bottling plants

Reliable transmission of power, signals and data.

In high-efficiency bottling plants, the individual process steps are usually arranged on carousels. There are specific requirements for each work step at such a bottling plant when it comes to the transmission of electricity, data, compressed air or fluids to the rotating platform. In addition, the individual plant parts are digitally networked with each other and are based on a fieldbus or Ethernet communication.

With many years of experience in the field of transmission technology, Kübler offers a modular technology system for slip rings. So that you have maximum flexibility in selecting your slip ring. Kübler slip rings are made with the highest quality awareness and carefully selected materials. In addition to transmitting electricity and signals, parallel data for the fieldbus and Ethernet communication is also reliably and quickly transmitted with a high data transmission quality. Combined with a media lead-through, the slip rings also reliably and safely transmit fluids and gases (hydraulic and pneumatic). Not least, the high degree of protection and the aluminum or stainless steel housing are also noteworthy features of Kübler slip rings. We face every challenge: We implement modifications and special solutions quickly and easily for you.

Reliable and custom

  • Slip rings – custom solution
  • Transmission of power, signals, and data
  • Parallel transmission of fieldbus and Ethernet
  • Media lead-through for hydraulics and pneumatics
  • Innovative contact technology – maintenance-free
  • Sturdy design – durable
Request custom solution

Slip rings for bottling plants

Reliable transmission of power, signals and data.

In high-efficiency bottling plants, the individual process steps are usually arranged on carousels. There are specific requirements for each work step at such a bottling plant when it comes to the transmission of electricity, data, compressed air or fluids to the rotating platform. In addition, the individual plant parts are digitally networked with each other and are based on a fieldbus or Ethernet communication.

With many years of experience in the field of transmission technology, Kübler offers a modular technology system for slip rings. So that you have maximum flexibility in selecting your slip ring. Kübler slip rings are made with the highest quality awareness and carefully selected materials. In addition to transmitting electricity and signals, parallel data for the fieldbus and Ethernet communication is also reliably and quickly transmitted with a high data transmission quality. Combined with a media lead-through, the slip rings also reliably and safely transmit fluids and gases (hydraulic and pneumatic). Not least, the high degree of protection and the aluminum or stainless steel housing are also noteworthy features of Kübler slip rings. We face every challenge: We implement modifications and special solutions quickly and easily for you.

The right slip ring for every process step

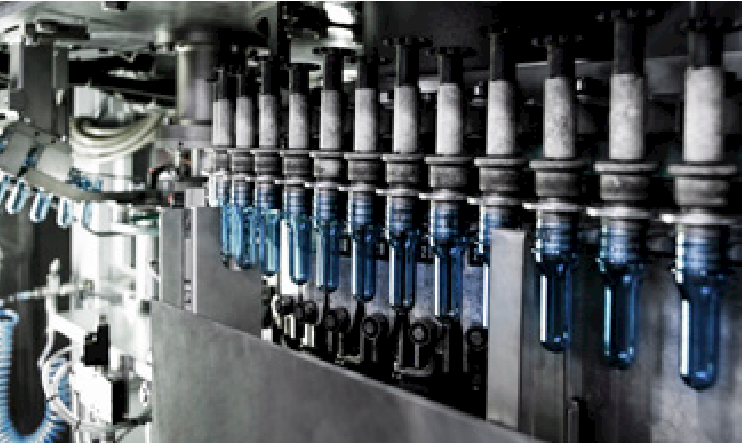

Blow molding

Transmission of up to 80 A and more ...

In this process, finished PET bottles are made from special plastic blanks. Kübler slip rings ensure a reliable signal and data transmission for control and regulation tasks. For example, the slip rings SR160 and SR250H are used here. The slip ring SR160 is characterized by its high level of flexibility when it comes to mounting and connection possibilities. The slip ring SR250H is the ideal solution for a high load transmission of up to 80 A and more.

Cleaning / Inspection

Hygiene is essential

There can be no mistakes here. Hygiene and bottle quality are top priority. Every bottle is cleaned and checked for leaks and foreign bodies. Kübler slip rings meet high hygienic requirements and can be selected with a degree of protection of up to IP67. In this process cycle, individual units are supplied with power, signals, data and fluids or gases. In addition, a reliable Ethernet transmission is important here too.

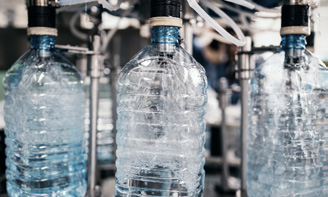

Filling

Quick and constant throughput times

The core process of any filling plant. Every bottle is quickly filled precisely to the millimeter. The properties of the Kübler slip rings are needed here. Because for such highly-dynamic rotating platforms, a smooth and permanent use is essential to increasing the efficiency of filling plants. Kübler slip rings are used here for the interference-free signal transmission and Ethernet data transmission. In addition, the carousel is supplied with power via the slip ring. The Kübler slip rings SR120 and SR160 are available to meet your needs.

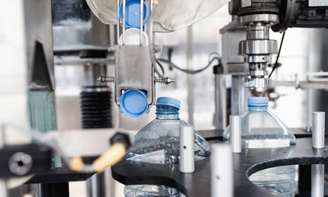

Sealing

Put the cap on and you're done

The bottles are sealed immediately after the filling process and are ready for the last process step. Kübler slip rings ensure a reliable electric power supply of the individual sealing stations and a fault-free signal and data transmission for control tasks. The slip rings SR120 and SR160 are available for you to choose from.

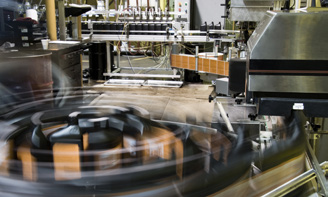

Labeling

Label efficiently and reliably

This is where bottles get their identity. The pre-made label must be attached accurately and at lightning speed. The various types of drive technology used must be reliably supplied with power. In addition, control data for the individual labeling stations must be transmitted without fault. The Kübler slip ring SR120 is the right solution for this application.

Example slip rings for filling plants

Are you looking for a reliable solution for transmitting power, signals and data? Then our slip rings are the ideal solution. Leading manufacturers have been using Kübler slip rings for years and value the high adaptability, the quality of data transmission as well as the maintenance-free use. With Kübler, in addition to a reliable transmission, you also ensure a high system availability of your systems.

Industrial Ethernet
Industrial Ethernet
  • Ethernet transmission up to 100 Mbps
  • Can be combined with a load transmission of up to 25 A
  • Ideal for industrial automation
To the slip ring SR120

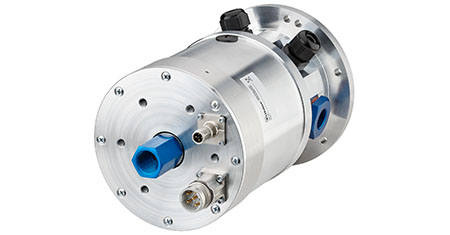

The all-rounder
The all-rounder
  • Ethernet transmission up to 1 Gbps
  • Can be combined with a load transmission of up to 50 A
  • Can be configured flexibly
To the slip ring SR160

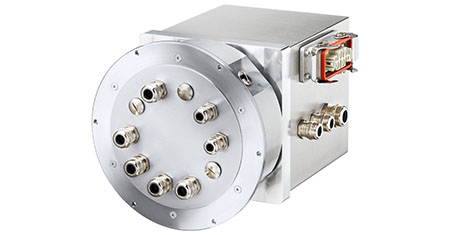

Powerful
Powerful
  • Ethernet transmission up to 1 Gbps
  • Can be combined with a load transmission of up to 120 A
  • Can be configured flexibly
To the slip ring SR250H

Positioning and speed monitoring with optical encoders and linear measuring systems

Safe, quick, versatile and compact – properties that make Kübler encoders particularly ideal for use in packaging machines. The sturdy bearing structure in the Safety-Lock™ design with extra-strong outer bearings increases the lifespan and avoids machine downtime and repairs. Numerous ordering options, such as connection and fastening options, allow for a flexible and universal use. Linear measuring systems and custom measuring wheel systems are available to you for monitoring linear movements.

For tight installation spaces
For tight installation spaces
  • Miniature incremental encoder
  • Resolution max. 1024 ppr.
  • Dimension of ø 24 mm
To the 2400 / 2420
Economic solution
Economic solution
  • Compact incremental encoder
  • Resolution max. 2500 ppr.
  • Dimension of ø 40 mm
To the Sendix KIS40 / KIH40
Uniquely versatile
Uniquely versatile
  • Incremental encoder
  • Resolution max. 5000 ppr.
  • Dimension of ø 58 mm
To the Sendix 5000 / 5020
IO Link encoders for automation tasks
IO Link encoders for automation tasks
  • Extremely resistant
  • Magnetic Scanning
  • As singleturn or multiturn
To the M36 / M58
Stainless steel incremental encoder
Stainless steel incremental encoder
  • High quality seals
  • Resolution max. 5000 ppr.
  • Dimension of ø 58 mm
To the Sendix 5006 / 5026
SSI interface
SSI interface
  • Absolute Encoders Singleturn
  • Resolution max. 17 bits
  • Dimension of ø 58 mm
To the Sendix 5853 / 5873
Gearless absolute rotary encoder
Gearless absolute rotary encoder
  • Particularly insensitive
  • As a singleturn or multiturn
  • Dimension of ø 36 mm
  • Dimension of ø 58 mm
To the Sendix F36 / F58
Field bus and industrial Ethernet communication
Field bus and industrial Ethernet communication
  • Absolute rotary encoder
  • Singleturn or multiturn
  • Dimension of ø 58 mm
  • From Profibus to EtherNet/IP
To the Sendix 58xx
Linear measuring systems for Magnetic length measuring systems: Protection class IP69k. Suitable for harsh environmental conditions. Compact design - perfect for tight spaces. Incremental or absolute.
Magnetic length measuring systems

Extremely robust

Protection class IP69k. Suitable for harsh environmental conditions. Compact design - perfect for tight spaces. Incremental or absolute.

Overview
Linear measuring systems for Length measuring sets / Measuring wheel systems Various length measuring sets. The right measuring wheel for any surface. Can be combined with various encoders.
Measuring wheel systems
Custom-combinable

Various measuring wheel systems. The right measuring wheel for any surface. Can be combined with various encoders.
Overview

Detecting, controlling and visualizing with counters and process controllers.

The powerful and very easy to operate Codix preset counters allow for decentralized, low-cost control systems, from simple unit quantity counting to controlling welding seams. The compact Codix displays serve to visualize, for example unit count, time or temperature, directly at the site of occurrence.

Tachometers / frequency displays: Acquire, control, and monitor linear and rotational speeds and flow rates. Tachometer with and without limit values. Analog & Digital speedometer, gear indicator, gauges, meters, monitor intrvals, rate and frequency
Tachometers / frequency displays

Acquire, control, and monitor linear and rotational speeds and flow rates. Tachometer with and without limit values.

Overview
Preset counters: Conveniently control pulses, times, and speeds. Electromechanical and electronic preset counters, Timers/Time Switches/Counters/Hour Meters
Preset counters

Conveniently control pulses, times, and speeds. Electromechanical and electronic preset counters.

Overview
Hour meters / Timers: Acquisition of short-term measurements, run times, and service intervals. Electromechanical and electronic counters, tachometers, display, preset,
Hour meters / Timers

Acquisition of short-term measurements, run times, and service intervals. Electromechanical and electronic counters.

Overview
Pulse counters: Acquisition of unit counts, quantities, and events. Electromechanical, electronic and pneumatic pulse counters, preset, analog, digital inputs, rate/totalizer, ratemeter, totalizer intervals, frequencies, displays
Pulse counters

Acquisition of unit counts, quantities, and events.
Electromechanical, electronic and pneumatic pulse counters.

Overview
Position displays: Display, control, and monitor positions. Position readouts with or without limit values, Pulse Counters, Position Displays, Rate Meters, Time Meters
Position displays

Display, control, and monitor positions. Position readouts with or without limit values.

Overview
IO-Link touch display & process controller
IO-Link touch display & process controller

Multifunctional for pulses, times, frequencies - also reciprocal. SSI position display with speed. Multicolor display.
