Signal converters

Convert input signals to the desired output format.

Signal converters convert the format of the input signals into the desired output format. In addition to the pure conversion of signals, signal converters also offer the possibility of filtering or linearizing signals. Additional functions such as calculations, sampling and data logging are also possible. The modules are usually set using DIL switches or, alternatively, by software.

Comprehensive and versatile

Conversion of different signal formats:
- HTL / TTL, SinCos, SSI, Analog
Output frequency up to 4 MHz
12 - 30 V supply voltage

Go to Product Finder

Signal converters

Convert input signals to the desired output format.

Signal converters convert the format of the input signals into the desired output format. In addition to the pure conversion of signals, signal converters also offer the possibility of filtering or linearizing signals. Additional functions such as calculations, sampling and data logging are also possible. The modules are usually set using DIL switches or, alternatively, by software.

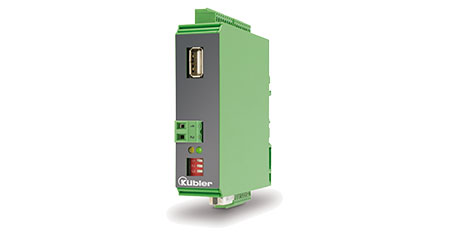

Analog to digital: Easily parameterizable via software, Programmable zero pulse, Data logging function, 4 control inputs

Analog to digital

Easily parameterizable via software
Programmable zero pulse
Data logging function
4 control inputs

To the 1A-1S1D2RS

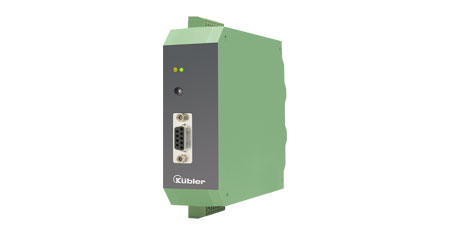

SinCos to HTL / TTL: Individual adjustment of output, frequency via divider and multiplier, Output frequencies up to 4 MHz

SinCos to HTL / TTL

Individual adjustment of output frequency via divider and multiplier
Output frequencies up to 4 MHz

To the 1SC-1D

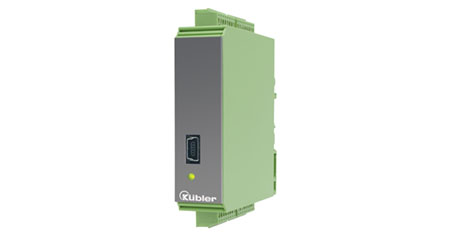

Digital / SSI to Analog / Serial: Easy to parameterize via software, Additional functions such as bit blanking, linking, scaling and much more., 6 control inputs, 6 control outputs

Digital / SSI to Analog / Serial

Easy to parameterize via software
Additional functions such as bit blanking, linking, scaling and much more.
6 control inputs
6 control outputs

To the 1S1D-1A2RS

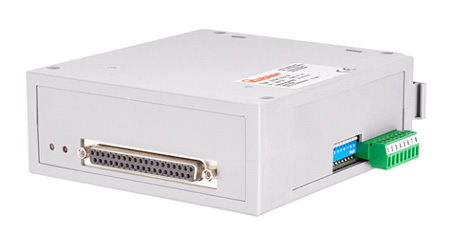

SSI to parallel: Switchable master / slave operation, Strobe output, Suitable for Gray and binary codes

SSI to parallel

Switchable master / slave operation
Strobe output
Suitable for Gray and binary codes

To the 1S-1P
