PRODUCTS MEASUREMENT Bearingless Encoders

Bearingless encoders

Reliable speed measuring with magnetic sensor solution.

Bearingless encoders are the perfect alternative to bearing mounted encoders, due to their compact design and easy mounting options on almost any shaft diameter. Bearingless encoders from Kübler are already used today in drive and elevator technology, for asynchronous motors or external rotor motors, or in generators, large motors, and wind turbines. Our smart technology is available for the highest signal quality. Digital real-time signal processing compensates for possible signal errors and optimizes drive control. Design your plants, machines, or motors with Kübler!

Compact and wear-free sensor solution

  • Any resolution can be realized
  • Programmable for maximum flexibility
  • For shaft diameters up to 390 mm
  • Customer-specific solutions on request
Go to Product Finder

Bearingless encoders

Reliable speed measuring with magnetic sensor solution.

Bearingless encoders are the perfect alternative to bearing mounted encoders, due to their compact design and easy mounting options on almost any shaft diameter. Bearingless encoders from Kübler are already used today in drive and elevator technology, for asynchronous motors or external rotor motors, or in generators, large motors, and wind turbines. Our smart technology is available for the highest signal quality. Digital real-time signal processing compensates for possible signal errors and optimizes drive control. Design your plants, machines, or motors with Kübler!

Technology in detail

Which sensor head is suitable for my application?
Which magnetic ring sizes are available? Simply explained here.

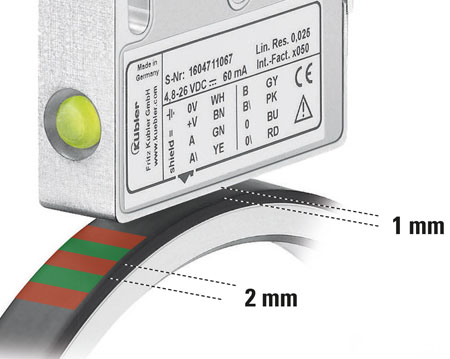

For high signal quality

For high signal quality

If high demands are placed on signal quality, the RIM200 bearingless rotary encoders with 2 mm pole length or the RIM2000 programmable bearingless rotary encoders should be used. This requires good bearings and a stable installation process that allows an air gap of up to 1 mm.

For applications with a larger air gap

For applications with a larger air gap

If the application requires a larger air gap (up to max. 2 mm), the RIM500 bearingless rotary encoders with 5 mm pole length or the RIM5000 programmable bearingless rotary encoders are used. These also offer high performance and high signal quality.

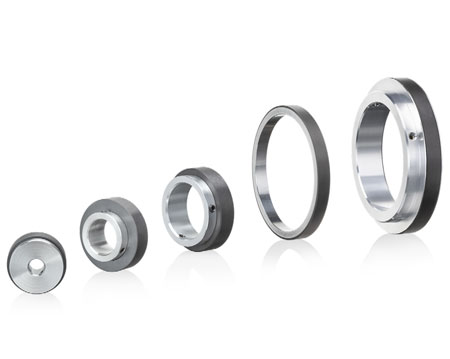

Wide selection of magnetic rings

Wide selection of magnetic rings

Even if a high resolution can be realized for all outer diameters, it is recommended to select the largest possible diameter.

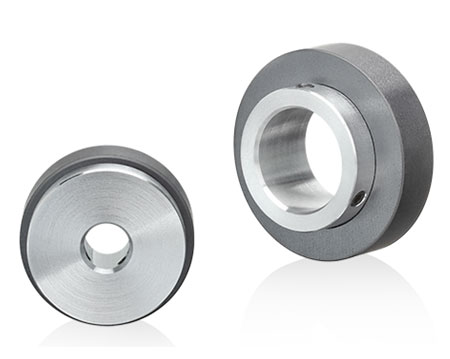

Various mounting options

Various mounting options

Various diameters and fastening types are available for mounting on the application shaft.

Any resolution can be realized with any magnetic ring

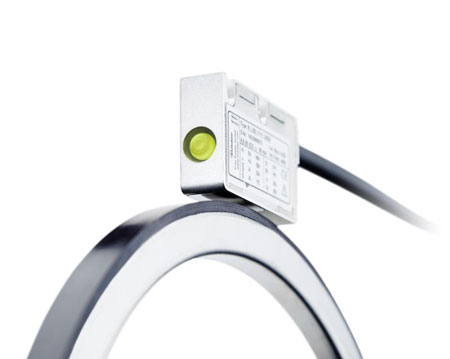

Pole length 2 mm
Pole length 2 mm
  • High signal quality
  • Air gap up to max. 1 mm
  • With zero pulse
To the RIM200
Pole length 5 mm
Pole length 5 mm
  • High signal quality
  • Air gap up to max. 2 mm
  • With zero pulse
To the RIM500

And also programmable for maximum flexibility

Pole length 2 mm
Pole length 2 mm
  • Programmable
  • Air gap up to max. 1 mm
  • With zero pulse
To the RIM2000
Pole length 5 mm
Pole length 5 mm
  • Programmable
  • Air gap up to max. 2 mm
  • With zero pulse
To the RIM5000

VIDEOS

YouTube Video Bearingless encoders

Compact & wear-free sensor solution: Bearingless encoders - English

Open in YouTube
YouTube Video Bearingless encoders

Simple and fast installation - Bearingless Encoders - English

In this tutorial we will show you how to easily mount a bearingless encoder.

Open in YouTube
