Solutions for heavy cranes

Availability around the clock: Encoders for positioning and speed measuring.

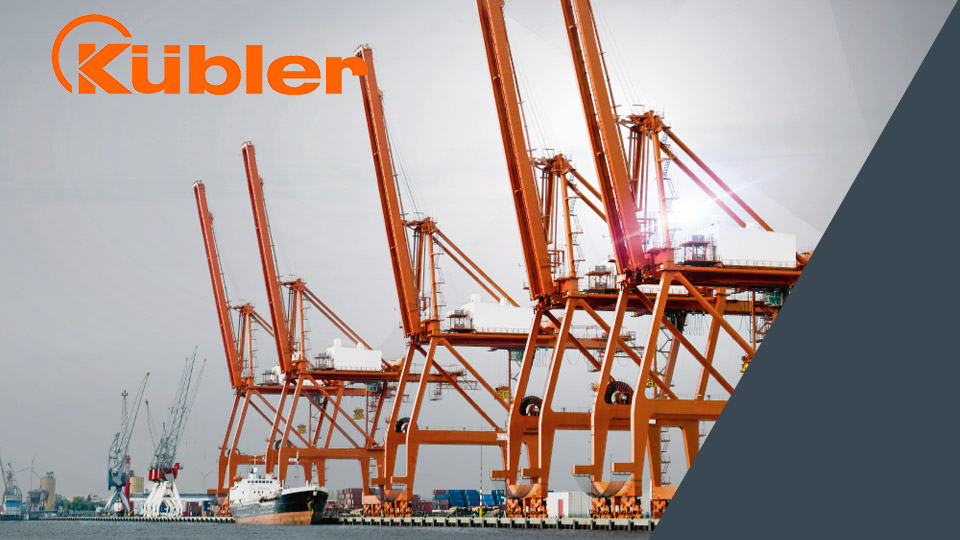

Whether for portal cranes, container loading bridges or stacker cranes, the requirements for automation and safety are ever-increasing. Kübler encoders measure the position at the cable hoisting gear, at the travel gear rail-bound or with rubber tires and at the spreader. The sturdy and safe measuring equipment makes an automatic container positioning possible in the first place. Our products have been reliably used in this field for years. The result is a high system availability. Kübler sensors have been providing top performance for decades in portal cranes in shipping ports and overhead cranes in production lines or steel plants. You can trust our encoders too.

Robust and durable

Incremental and absolute rotary encoders
Suitable for outdoor use
Speed and position detection
High degree of protection up to IP69k
CANopen interface and many others

Request custom solution

Solutions for heavy cranes

Availability around the clock: Encoders for positioning and speed measuring.

Whether for portal cranes, container loading bridges or stacker cranes, the requirements for automation and safety are ever-increasing. Kübler encoders measure the position at the cable hoisting gear, at the travel gear rail-bound or with rubber tires and at the spreader. The sturdy and safe measuring equipment makes an automatic container positioning possible in the first place. Our products have been reliably used in this field for years. The result is a high system availability. Kübler sensors have been providing top performance for decades in portal cranes in shipping ports and overhead cranes in production lines or steel plants. You can trust our encoders too.

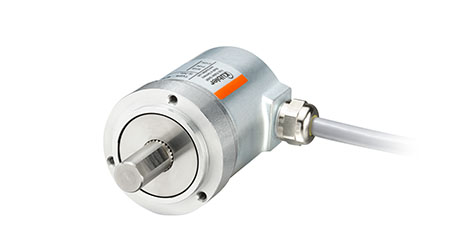

Trolley position

1 Trolley position

Multiturn encoder
Magnetic – sturdy
Stainless steel variant V4A
Dimension of ø 42 mm

To the Sendix M36R

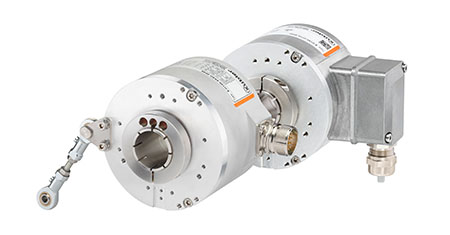

Hoist speed

2 Hoist speed

Heavy duty incremental encoder
Optical – precise
Bearing insulation up to 2.5 kV
Resolution max. 5000 ppr.

To the Sendix Heavy Duty H120

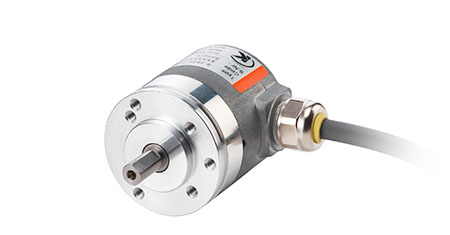

Boom angle / end position

3 Boom angle / end position

Singleturn encoders
Magnetic – sturdy
Dimension of ø 36 mm
Optional: seawater resistant

To the Sendix M3658

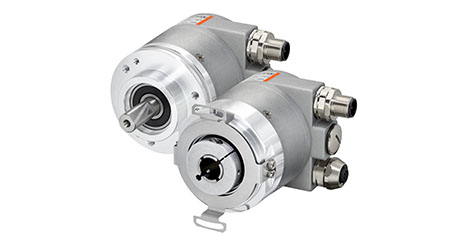

Spreader control

4-7 Spreader control

Absolute encoders, singleturn and multiturn
Optical – precise
Resolution max. 16 bit singleturn / 12 bit multiturn
Dimension of ø 58 mm

To the Sendix 58XX CANopen

Travel speed

8 Travel speed

Incremental encoder
Optical – precise
Numerous ordering options
Dimension of ø 58 mm

To the Sendix 5000 / 5020
