Solutions for the packaging industry

Maximum system efficiency with Kübler products.

A high yield under efficient production conditions is crucial for the economic operation of modern production facilities in the packaging industry. Key factors to the economic efficiency of production are: Increased plant performance by accelerating individual processes, optimized control of production orders and minimization of downtimes. Kübler has offered suitable products for this purpose for years, which renowned manufacturers of packaging machines, rotary indexing tables or filling plants use. From encoders to linear measuring systems and slip rings to counters and process controllers. Regardless of which product you choose – every single one of them meets the high requirements of the food industry and is thus the ideal solution for your plant.

Reliable and durable

Slip rings: from standard to custom
Incremental and absolute rotary encoders
Displays, counters and process controllers
Ideal for the most stringent hygiene requirements
High degree of protection, stainless steel variants

Request custom solution

Solutions for the packaging industry

Maximum system efficiency with Kübler products.

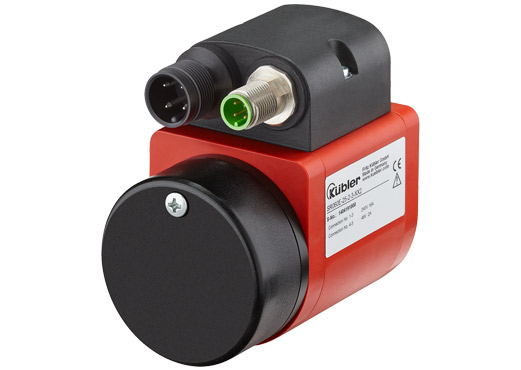

Slip ring SR060E – the flow pack specialist. NEW: Plug and Play dank Easy Connect Modul

Ideally suited for the heating of sealing rollers. Specially developed for this task, the Kübler SR060E slip ring has been used by leading manufacturers for years and has proven itself to be a reliable and durable solution for transmitting load and signals.

NEW: The SR060E is now available with the Easy Connect Module, a pre-wired connection cap with connectors. Without time-consuming wiring, the slip ring can be quickly and safely integrated into the system on site thanks to reverse polarity protection. Replacement can also be easily carried out via "plug and play".

Compact design – space-saving
3 load and 2 signal transmissions – reliable
Innovative contact technology, no oils needed – low-maintenance
High degree of protection, smooth surfaces – easy to clean

To the compact slip ring SR060E

Transmission of power, signals and data with modular slip rings

Carousels are used in highly-dynamic plants for various process steps. Each carousel must be supplied with power and be connected to the control system accordingly. Kübler slip rings are the ideal solution. They stand for a reliable transmission of power, signals and data. When combined with a media lead-through, fluids and gases (hydraulic and pneumatic) are also transmitted.

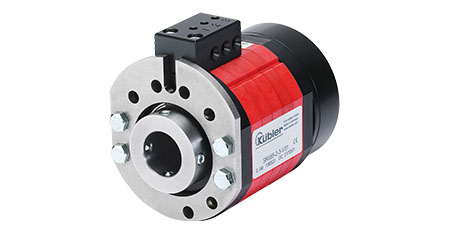

Modular and flexible

Up to 20 channels (signal/load)
Electric load up to 25 A
30 mm hollow shaft or flange mounting
Maintenance cycles <= 500 million / U

To the slip ring SR085

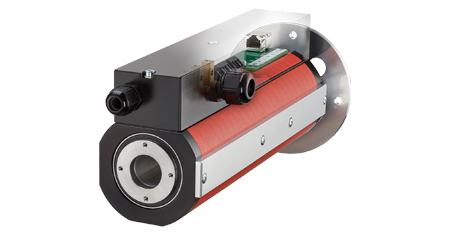

For Industry 4.0 / IIoT concepts.

Reliable transmission of loads up to 25 A.
Transmission of Industrial Ethernet up to 100 Mbit/s.
Quick and easy replacement by user.

To the SR085IE slip ring

Positioning and speed monitoring with optical encoders and linear measuring systems

Safe, quick, versatile and compact – properties that make Kübler encoders particularly ideal for use in packaging machines. The sturdy bearing structure in the Safety-Lock™ design with extra-strong outer bearings increases the lifespan and avoids machine downtime and repairs. Numerous ordering options, such as connection and fastening options, allow for a flexible and universal use. Linear measuring systems and custom measuring wheel systems are available to you for monitoring linear movements.

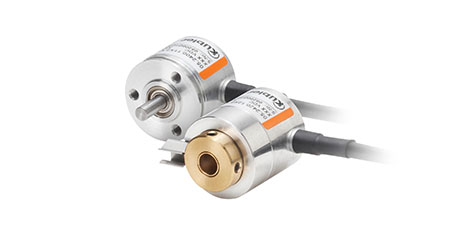

For tight installation spaces

Miniature incremental encoder
Resolution max. 1024 ppr.
Dimension of ø 24 mm

To the 2400 / 2420

Economic solution

Compact incremental encoder
Resolution max. 2500 ppr.
Dimension of ø 40 mm

To the Sendix KIS40 / KIH40

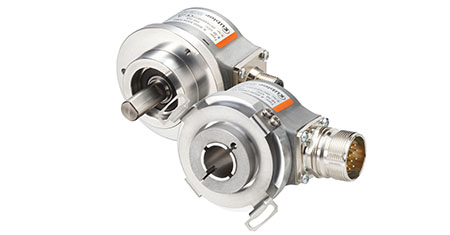

Uniquely versatile

Incremental encoder
Resolution max. 5000 ppr.
Dimension of ø 58 mm

To the Sendix 5000 / 5020

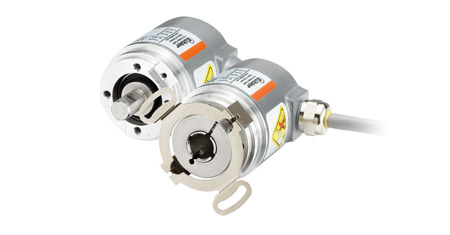

Rotary encoder with IO-Link

Extremely resistant
Magnetic Scanning
As singleturn or multiturn

To the M36 / M58

Stainless steel incremental encoder

High quality seals
Resolution max. 5000 ppr.
Dimension of ø 58 mm

To the Sendix 5006 / 5026

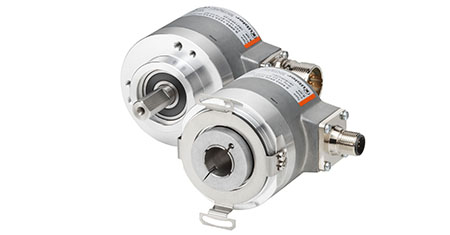

SSI interface

Absolute Encoders Singleturn
Resolution max. 17 bits
Dimension of ø 58 mm

To the Sendix 5853 / 5873

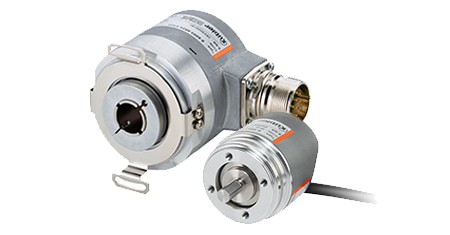

Gearless absolute rotary encoder

Particularly insensitive
As a singleturn or multiturn
Dimension of ø 36 mm
Dimension of ø 58 mm

To the Sendix F36 / F58

Field bus and industrial Ethernet communication

Absolute rotary encoder
Singleturn or multiturn
Dimension of ø 58 mm
From Profibus to EtherNet/IP

To the Sendix 58xx

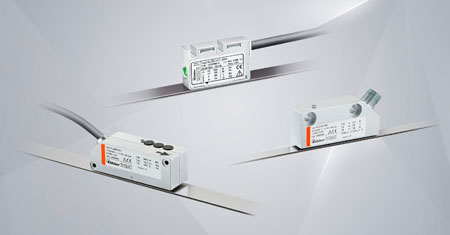

Magnetic length measuring systems

Extremely robust

Protective IP69k. Suitable for harsh environmental conditions. Compact design - perfect for tight installation spaces. Incremental or absolute.

To the overview

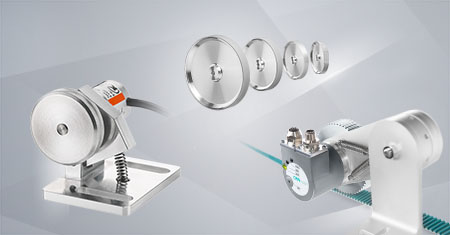

Length measuring sets / Measuring wheel systems

Can be individually combined

Different length measuring sets. The right measuring wheel for every surface. Can be combined with various encoders.

To the overview

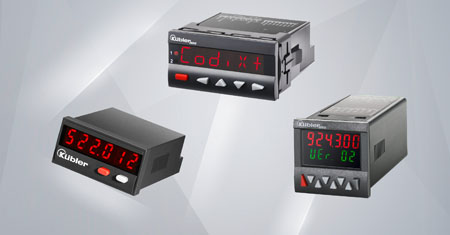

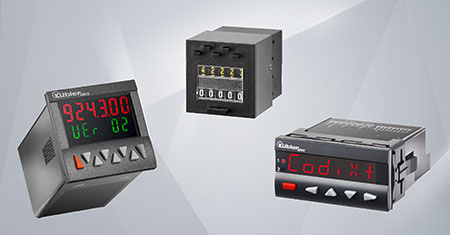

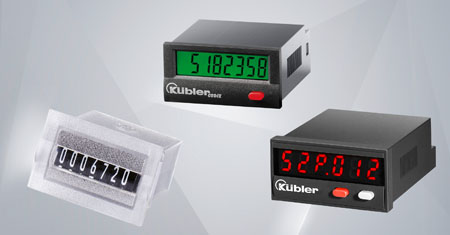

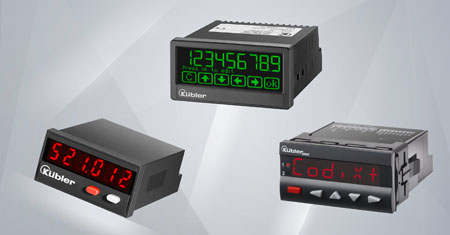

Detecting, controlling and visualizing with counters and process controllers.

The powerful and very easy to operate Codix preset counters allow for decentralized, low-cost control systems, from simple unit quantity counting to controlling welding seams. The compact Codix displays serve to visualize, for example unit count, time or temperature, directly at the site of occurrence.
