More space for your system concepts: space-saving all-in-one solution with maximum power density.

Integrated servomotors - Synapticon by Kübler

Maximum performance

Space-saving - compact design
Efficient - optimized thermal concept
Precise - battery-free Kübler multiturn encoder
Flexible - 200W-1000W, with/without brake, single-cable solution
Simple - quick commissioning via web interface

More space for your system concepts: space-saving all-in-one solution with maximum power density.

Integrated servomotors - Synapticon by Kübler

Space, time and costs are decisive factors in modern automation. The new servomotors with integrated drive control offer high power density in a compact design and therefore enable more efficient machine concepts.

This solution is suitable for numerous applications - from automation to intralogistics and across a wide performance spectrum. Thanks to the innovative thermal concept, motor derating remains virtually zero - more power without energy losses.

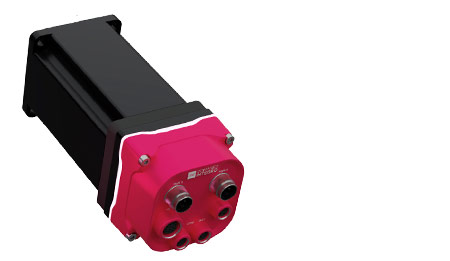

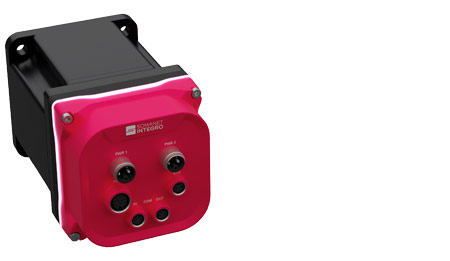

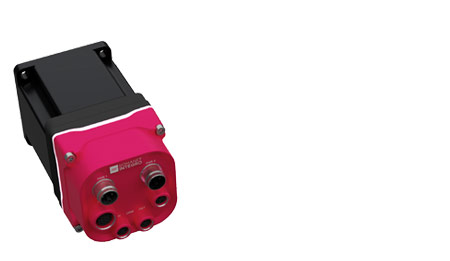

Actilink-S: integrated servomotor

From 200W to 1000W
Torque from 0.65 Nm to 3.2 Nm
With or without brake
Interfaces: EtherCAT, PROFINET, EtherNet/IP and in future CAN and other secure Ethernet protocols
Safety functions: STO, SBC.

Integrated encoder solution with high-performance multiturn technology

Real-time capability: Precise positioning and short cycle times

The integrated, electronic multiturn sensor system without mechanical gearing from Kübler measures the absolute position, speed and direction of rotation of the motor shaft in real time. Compared to conventional resolvers, the encoder offers a higher resolution and accuracy, which enables precise and fast positioning.

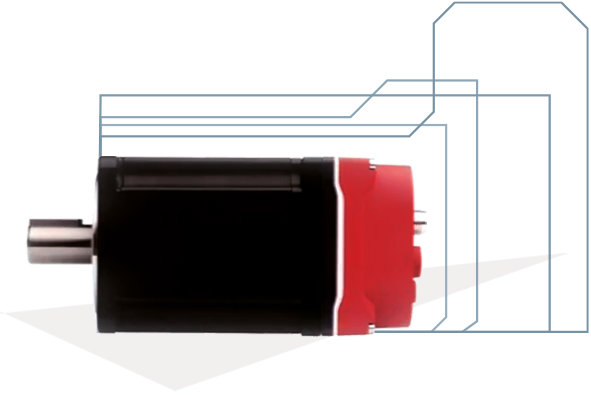

Less space

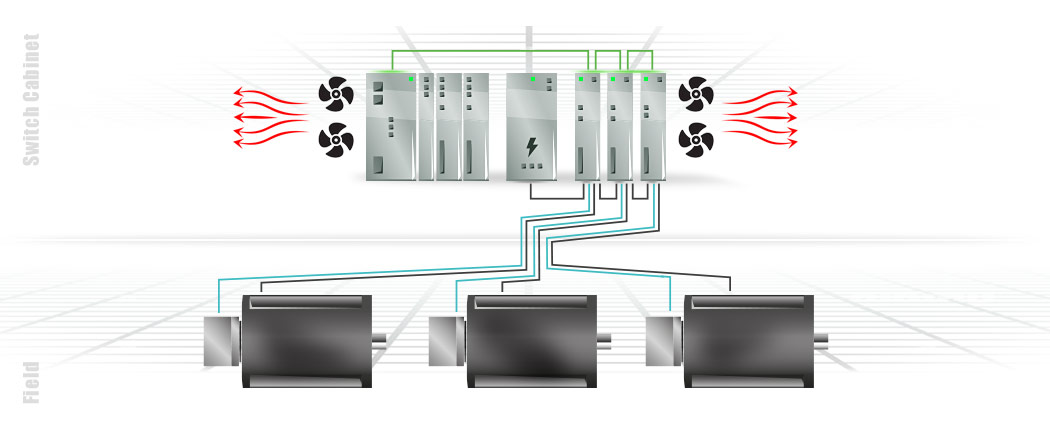

More compact machines and flexible installation options create significantly more space in your application - less control cabinet requirement, more space for your production.

less material

Thanks to the all-in-one solution, there is no need for meters of cabling, control cabinets become more compact and systems and machines can be designed to save space.

Lower costs

by optimizing the entire value chain (TCO): Material savings thanks to compact system structure, reduced cabling and therefore time and cost savings during installation.

Performance

Maximum power density in a compact design thanks to innovative thermal concept - Motor derating almost at zero.

Efficient line topology as it should be.

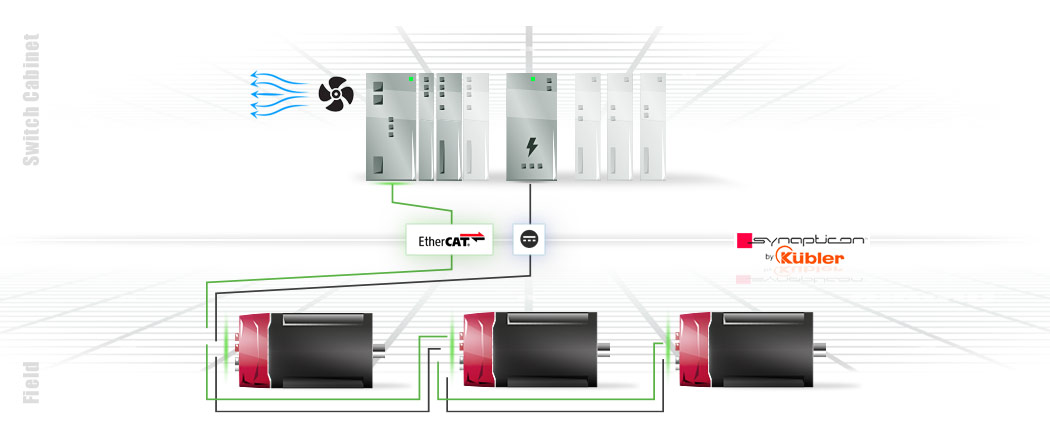

As a genuine all-in-one solution, ACTILINK-S combines control, sensor technology and power electronics directly in the motor, thus also enabling particularly lean single-cable solutions. A minimum amount of cabling reduces susceptibility to EMC, speeds up commissioning and opens up highly modular machine architectures. From line to ring topologies, flexible concepts can be implemented that also significantly reduce the size of the control cabinet. Completely new, ultra-compact machine layouts become feasible!
