PRODUCTS MEASUREMENT Encoders

Encoders

Speed measurement and position detection using incremental and absolute encoders.

Choose the perfect encoder for your application from a variety of sizes and ordering options. The Sendix encoder – made in Germany – is the result of the highest quality awareness and careful selection of materials. It has proved its value in many industries as a robust and precise sensor technology. Design your plants, machines, or motors with Kübler. Your application is our priority: Your modifications and special solutions are implemented flexibly and quickly. We look forward to your challenge.

Incremental and absolute

  • Shaft and hollow shaft variants
  • Size ranging from miniature Ø 24 mm to maxi Ø 100 mm
  • Optical and magnetic sensing
  • Wide operating temperature range and high protection class
  • Standard, fieldbus, Industrial Ethernet interfaces
Go to Product Finder

Encoders

Speed measurement and position detection using incremental and absolute encoders.

Choose the perfect encoder for your application from a variety of sizes and ordering options. The Sendix encoder – made in Germany – is the result of the highest quality awareness and careful selection of materials. It has proved its value in many industries as a robust and precise sensor technology. Design your plants, machines, or motors with Kübler. Your application is our priority: Your modifications and special solutions are implemented flexibly and quickly. We look forward to your challenge.

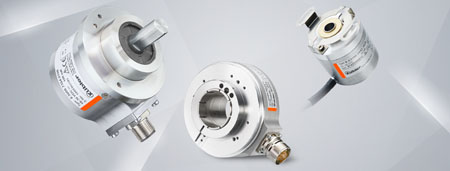

Incremental Encoders: motion or position of a shaft into an analog or digital code to identify position or motion Speed measurement on rotating axes with incremental encoders.
Incremental encoders

Speed measurement on rotating axes with incremental encoders. Sizes from miniature to maxi available. Optical and magnetic scanning. From standard to specially certified encoders.

Overview

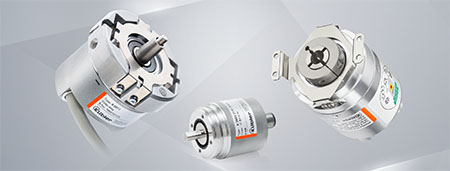

Absolute encoders singleturn: Position detection positioning over 360° or one revolution with single-turn absolute rotary encoders.
Absolute encoders singleturn

Position detection over 360° with singleturn absolute encoders. Various sizes. High resolution up to 21 bit. Variety of standard, fieldbus, and Industrial Ethernet interfaces.

Overview

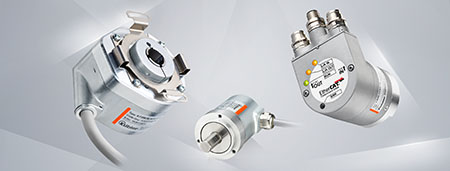

Absolute encoders multiturn: Position detection over multiple turns with multi-turn rotary encoders.
Absolute encoders multiturn

Position detection over multiple turns with multiturn encoders. Various sizes. Variety of standard, fieldbus, and Industrial Ethernet interfaces. The right multiturn technology for any requirement.

Overview

Applications of Kübler encoders

Various applications of industrial automation

Encoders are used wherever lengths, positions, rotational speeds, and angles need to be recorded. They convert mechanical motion into electrical signals. There are differences in the functional principles of encoders. They can thus be divided into incremental and absolute versions.We can generally supply you with all of the encoders in both shaft and hollow shaft models.

The use of hollow shaft encoders reduces costs by up to 30% and installation space by 50% compared to shaft models. This is made possible by the fact that additional couplings, mounting devices and other fixing aids are not required. To install a hollow shaft encoder, it is simply pushed onto the drive shaft, clamped and, in the simplest case, secured against rotation using a cylindrical pin. In addition, hollow shaft encoders generally require a smaller installation depth.

Application examples for encoders

Angle measurement: Encoders rotational position of a load in relation to a shaft or point, measure angles by the number of pulses per revolution

Measuring the change in the angle and rotation speed

Encoders can measure angles by the number of pulses per revolution. This is mainly used in industrial automation, whereby Kübler encoders are used in many different applications.

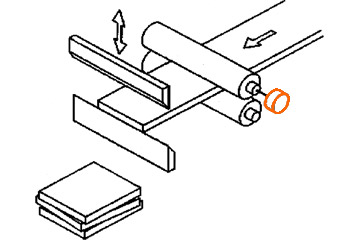

Length measurement: Measuring lengths and distances

Measuring lengths and distances

Encoders provide the most accurate information when measuring lengths and distances. This is possible via the number of pulses per revolution that are counted. Rotational speeds can also be recorded with the aid of encoders.
Position detection: Measuring the position

Measuring the position

In mechanical systems or hydraulic gripper arms, encoders detect the exact position in both vertical and horizontal planes.

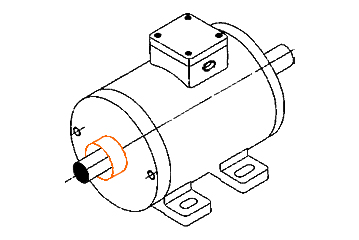

Speed measurement: Measuring the speed and acceleration

Measuring the speed and acceleration

Encoders measure the speed of motors in drive technology, for example. Acceleration can also be measured using encoders.

Kübler encoders are used in these industries

Kübler offers the right solution for any application. Sound application knowledge in many industries coupled with the highest quality awareness for products offers you the security of having a powerful and reliable partner on your side. We are also happy to take on individual challenges – your application is our priority!
Discover our solutions for industries now

Functional principles of encoders

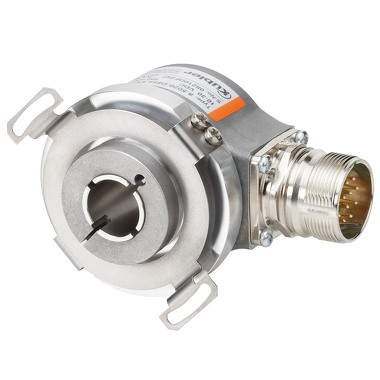

Incremental encoders for optical scanning

Incremental encoders for optical scanning

A rotatable disc is mounted between an LED and a receiver unit. A grating is applied to this disc. The light emitted by the LED is modulated by the screen and the grating and strikes the receiving unit, which delivers a signal proportionate to the brightness. When the disc is rotated, this signal has an approximately sinusoidal shape.


To the incremental encoders

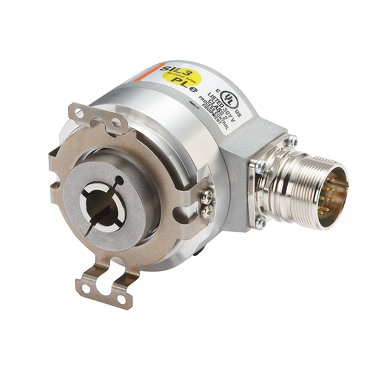

Absolute encoders with optical scanning

Absolute encoders with optical scanning

The light emitted by an LED is modulated by a code pattern applied to a rotating disc and scanned by a special Kübler Opto ASIC. Each position is assigned a unique bit pattern, which is usually available as a Gray Code. The advantage over incremental encoders is that, when the encoder is switched on, any motion of the shaft in a de-energized state is immediately detected and the correct position is available.


To the absolute rotary encoders

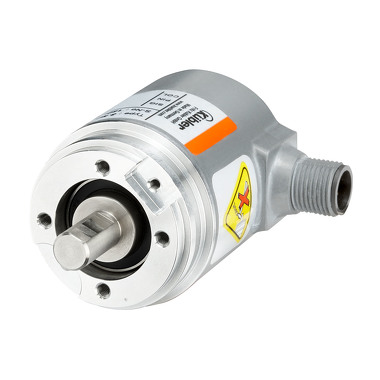

Encoders with magnetic scanning

Encoders with magnetic scanning

The magnetic field generated by a rotating permanent magnet is scanned by an ASIC sensor. Each angular position is based on field vectors, which are converted into an electrical signal by the ASIC. Depending on the model, this is transmitted as an incremental signal, in absolute form as SSI, 0 to 10 V, 4 to 20 mA or as a Fieldbus signal.


To the magnetic encoders
Especially robust encoders

Especially robust encoders

thanks to Kübler Safety Lock™

All Kübler encoders have a special Safety Lock structure. Interlocked bearings, large bearing clearances and extra-strong outer bearings provide Kübler encoders with stabilization under vibration and robust protection against installation errors. This eliminates machine downtime and repairs.
