PRODUCTS EVALUATION Safe Speed Monitors

Safe speed monitors

Reliable and safe speed monitoring.

The compact base module of the Safety-M compact series is a complete speed monitor in the smallest possible space (50 mm wide). The detachable operating and diagnostic display (OLED) stands for simple parameterization. The safe inputs/outputs and integrated signal splitter allow integration into existing safety circuits and upgrade of old machines.

Simple and compact

  • Integrated signal splitter – including analog output
  • Removable OLED touch screen plain text display
  • Simple programming with USB interface
  • Realization of drive safety functions

Safe speed monitors

Reliable and safe speed monitoring.

The compact base module of the Safety-M compact series is a complete speed monitor in the smallest possible space (50 mm wide). The detachable operating and diagnostic display (OLED) stands for simple parameterization. The safe inputs/outputs and integrated signal splitter allow integration into existing safety circuits and upgrade of old machines.

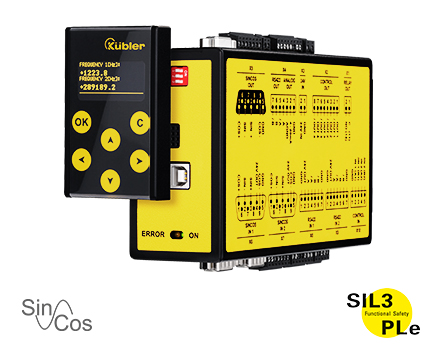

A safe SinCos measuring system: SinCos inputs: 1, Safe relay outputs: 1, Safe digital inputs: 4/2, Safe digital outputs: 8/4 Diagnostic OLED display, safe inputs/outputs
A safe SinCos measuring system
  • SinCos inputs: 1
  • Safe relay outputs: 1
  • Safe digital inputs: 4/2
  • Safe digital outputs: 8/4
To the SMC1.1

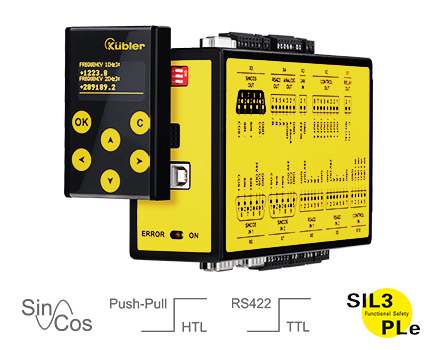

Two SinCos, incremental measuring systems, sensors: SinCos/incremental inputs: 2, Safe relay outputs: 1, Safe digital inputs: 4/2, Safe digital outputs: 8/4 Diagnostic OLED display, safe inputs/outputs
Two SinCos, incremental measuring systems, sensors
  • SinCos/incremental inputs: 2
  • Safe relay outputs: 1
  • Safe digital inputs: 4/2
  • Safe digital outputs: 8/4
To the SMC2.2
A safe incremental measuring system, sensor: Incremental/sensor inputs: 1, Safe relay outputs: 2, Safe digital inputs: 8/4, Safe digital outputs: 8/4 Diagnostic OLED display, safe inputs/outputs
A safe incremental measuring system, sensor
  • Incremental/sensor inputs: 1
  • Safe relay outputs: 2
  • Safe digital inputs: 8/4
  • Safe digital outputs: 8/4
To the SMC1.3

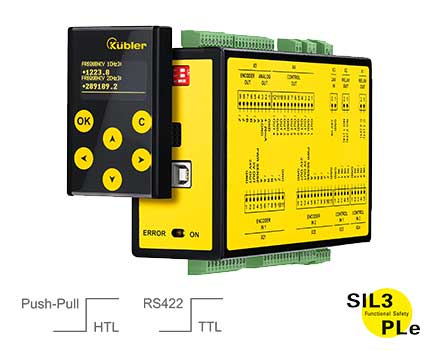

Two incremental measuring systems, sensors: Incremental/sensor inputs: 2, Safe relay outputs: 2, Safe digital inputs: 8/4, Safe digital outputs: 8/4 Diagnostic OLED display, safe inputs/outputs The Speed Monitor is connectable to the controllers. Zero-
Two incremental measuring systems, sensors
  • Incremental/sensor inputs: 2
  • Safe relay outputs: 2
  • Safe digital inputs: 8/4
  • Safe digital outputs: 8/4
To the SMC2.4

Accessories

Parameterize your device via the removable operating and diagnostic display or via the OS software. This lets you make diagnoses and settings conveniently on the PC, but also completely and easily via the intuitive touchpad display in the field. Select the right accessories for your product now.

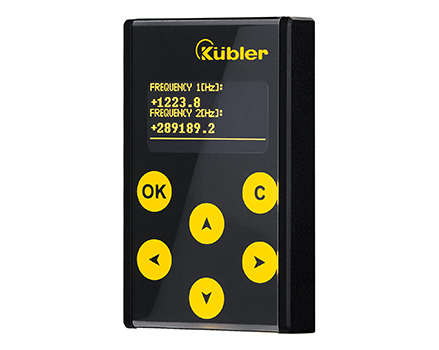

Operating and diagnostic display: For safe speed monitors SMC1.3 and SMC2.4, OLED touch screen, Individually scalable, Display of operating mode and error mode
Operating and diagnostic display
  • For safe speed monitors SMC1.3 and SMC2.4
  • OLED touch screen
  • Individually scalable
  • Display of operating mode and error mode
To the SMCB.1-Display
Parameterization software: Simple installation, Menu-guided, Simple parameterization, Diagnostic and monitoring functions
Parameterization software
  • Simple installation
  • Menu-guided
  • Simple parameterization
  • Diagnostic and monitoring functions
To the downloads

Application examples

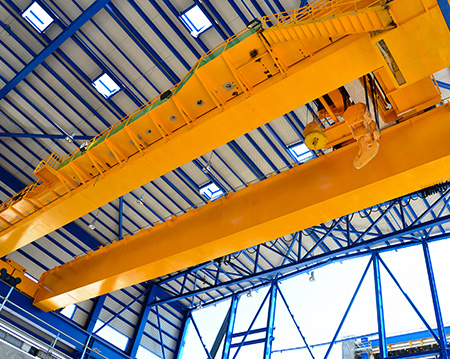

Application examples for crane systems.

For smooth continuous operation

In crane systems, in addition to the speed for lifting and lowering, the feed speeds for the X and Y axes are also monitored, thus preventing the transported goods from swinging. The many integrated safety functions ensure safe operation. In the event of a fault, the diagnostic functions quickly indicate the fault and thus contribute to faster troubleshooting.

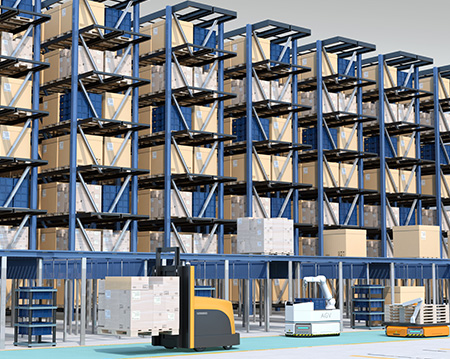

Stacker cranes

Safe interaction between man and machine

Safe speed monitoring is used for storage and retrieval machines with lifting device. These monitor the speed at which the goods are raised and lowered. Excessive speeds are thus avoided and there is no danger to people, machine, or goods. Various safety functions are implemented with the Safety-M compact and ensure safe shutdown of your plant in the event of a fault. Thanks to the diagnostic functions, any errors that occur are quickly evaluated and analyzed.

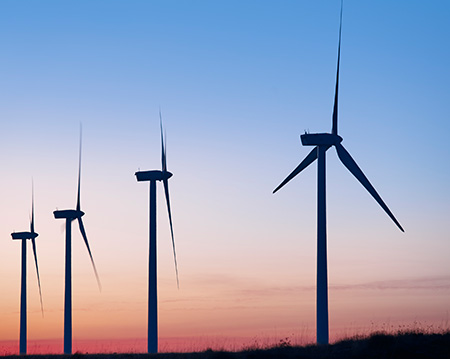

Wind power plants

Safe in the wind

In the case of wind turbines, safe standstill monitoring must be carried out not only for the speed but also in the event of excessive wind. Safety-M compact speed monitors, with their various safety functions, are perfect for this purpose. During operation, they monitor the speed and direction of rotation of the systems and, in the event of a malfunction, also their safe standstill.
Production plants and processing machines

For even greater safety

In production plants and fully automatic processing machines, it is often necessary to monitor not only the speeds but also the environment. The additional control inputs allow the direct integration of light curtains, light grids, or door monitors to ensure the safe operation of the system.
