Inclinometers

Precise and reliable – even under extreme operating conditions

The optimal solution for every application: Whether for static or dynamic measurement tasks, Kübler offers the right sensor technology for 1-axis and 2-axis inclination measurements as well as for rotation rate and acceleration measurements on all three axes. Compared to alternative measuring systems, inclination sensors offer more flexibility and degrees of freedom in system design, as they do not require a mechanical connection – for example, to a shaft or axis of rotation. This simplifies installation and significantly reduces potential sources of error. A wide range of analog and digital interfaces – optionally configurable via IO-Link – enables easy integration into modern IIoT systems.

Precise and reliable measurement

Suitable for the harshest environments
For static and dynamic applications

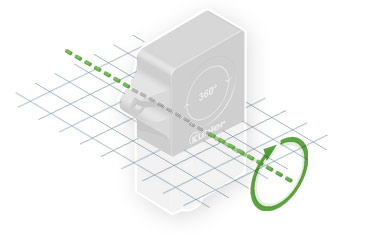

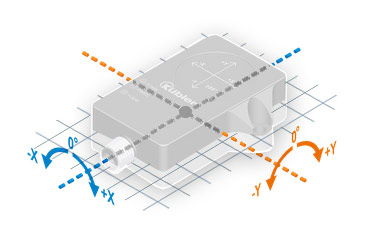

1-axis and 2-axis versions
Simple commissioning and diagnostics
Wide range of interfaces
IO-Link as a door opener for IIoT

Inclinometers

Precise and reliable – even under extreme operating conditions

The optimal solution for every application: Whether for static or dynamic measurement tasks, Kübler offers the right sensor technology for 1-axis and 2-axis inclination measurements as well as for rotation rate and acceleration measurements on all three axes. Compared to alternative measuring systems, inclination sensors offer more flexibility and degrees of freedom in system design, as they do not require a mechanical connection – for example, to a shaft or axis of rotation. This simplifies installation and significantly reduces potential sources of error. A wide range of analog and digital interfaces – optionally configurable via IO-Link – enables easy integration into modern IIoT systems.

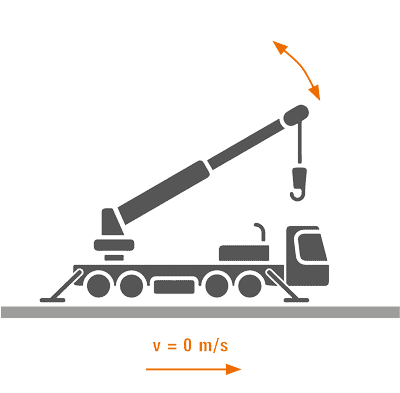

Inclinometers for static applications

Precise 1- or 2-axis inclination measurement

Applications in which the overall application does not move. The measurement is based on an acceleration measuring cell that provides a precise measurement at a moderate speed. Application examples: In mobile automation such as mobile cranes, lifting tables in intralogistics through to tracked photovoltaic systems in solar industry applications, and many more.

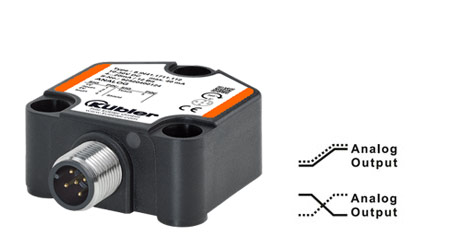

Maximum compactness and cost efficiency

Maximum compactness and cost efficiency

Ideal for the tightest installation spaces
Can be configured for specific applications
Easy to adapt with Easy-Teach adapter
Stackable for redundant measurements
High degree of protection IP68/IP69k

To the IN41

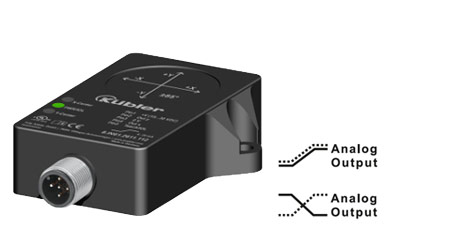

Individually parameterizable

Individually parameterizable

Various analog interfaces adjustable
Adjustable measuring range
Filter functions depending on the application
Easy-Teach via teach adapter
IO-Link interface for parameterization (FDT/IODD)

To the IN61

Robust and precise

Robust and precise

Various analog interfaces
Optionally with additional switching outputs
Robust metal housing
Stackable for redundant measurement
High protection class IP69k

To the IN81

2 switching outputs

2 switching outputs

Individual parameterization
Simple commissioning
Spirit level function
IO-Link interface for parameterization (FDT/IODD)

To the IN62

Door opener for Industry 4.0 / IIoT

Door opener for Industry 4.0 / IIoT

Simple commissioning and diagnostics
Adjustable measuring range
Filter functions depending on the application
Parameterization via FDT/IODD

To the IN68

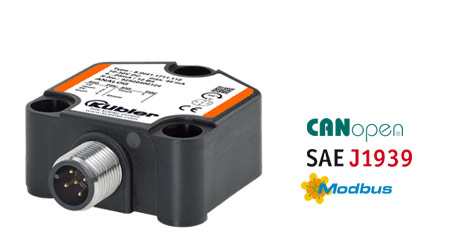

Maximum compactness and cost efficiency

Maximum compactness and cost efficiency

Ideal for the tightest installation spaces
Individual settings via the fieldbus interface
Stackable for redundant measurements
High degree of protection IP68/IP69k

To the IN48

Various fieldbus interfaces

Various fieldbus interfaces

Parametric filter adjustment
Robust metal housing
Stackable for redundant measurement
High protection class IP69k

To the IN88

For fieldbus communication

For fieldbus communication

Fast commissioning and diagnostics
LED water carriage function for visual orientation
Adjustable measuring ranges and filter functions
Wide voltage range 8...36 VDC
2x M12 plug for bus IN/OUT

To the IN68

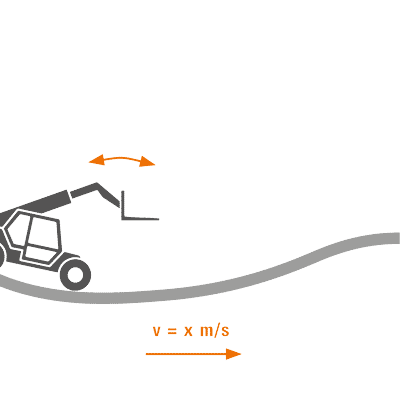

Inclinometers for dynamic applications

Precise 1- or 2-axis inclination measurement

Applications in which the entire application is in motion or exposed to strong vibrations and oscillations. In addition to the measurement via an acceleration measuring cell, a rotation is also determined via a rotation rate measuring cell. An intelligent calculation of the values from this sensor fusion enables the measurement result to be provided at a high speed. Application examples: In mobile automation such as wheel loaders, timber harvesters as well as forklift trucks, pallet trucks and automated guided vehicles (AGV) in intralogistics, etc.

Maximum compactness and cost optimized

Maximum compactness and cost optimized

Precise inclination measurement, even with movement, vibrations and oscillations
Ideal for the tightest installation spaces
Measuring range and filter individually configurable
Individually adaptable with Easy-Teach adapter
IP68/IP69k

To the IN51

For fieldbus communication

For fieldbus communication

Precise inclination measurement, even with movement, vibrations and oscillations
Individual settings via the fieldbus interface
Ideal for the tightest installation spaces
Measuring range and filter individually configurable
IP68/IP69k

To the IN58

Individually parameterizable

Individually parameterizable

Various analog interfaces adjustable
Adjustable measuring range
Filter functions depending on the application
Easy-Teach via teach adapter
IO-Link interface for parameterization (FDT/IODD)

To the IN71

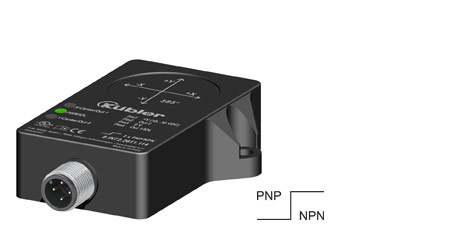

2 switching outputs

2 switching outputs

Individual parameterization
Simple commissioning
Spirit level function
IO-Link interface for parameterization (FDT/IODD)

To the IN72

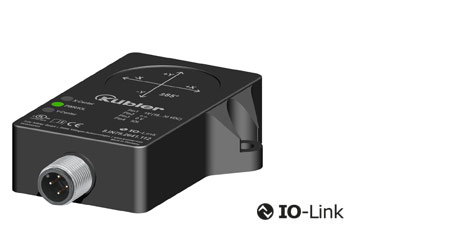

Door opener for Industry 4.0 / IIoT

Door opener for Industry 4.0 / IIoT

Simple commissioning and diagnostics
Adjustable measuring range
Filter functions depending on the application
Parameterization via FDT/IODD

To the IN78

For fieldbus communication

For fieldbus communication

Fast commissioning and diagnostics
LED water carriage function for visual orientation
Adjustable measuring ranges and filter functions
Wide voltage range 8...36 VDC
2x M12 plug for bus IN/OUT

To the IN78

Tilt sensors for dynamic applications (6DoF)
Precise 2-axis dynamic tilt measurement

For applications requiring precise measurement of two inclination angles in all three spatial axes – even during movement, vibrations, and oscillations. The measurement is based on an inertial measurement unit (IMU) that combines three acceleration and three rotation rate sensors (6DoF) and processes their signals using intelligent sensor fusion. This allows the exact spatial orientation of an object to be determined. In addition to the calculated angle values, the six raw measurement data can also be output individually and further processed. A major advantage of the IN58.6DoF sensors is their flexible installation position, as unlike classic 1- or 2-axis inclination sensors, they do not require strictly vertical or horizontal mounting, which makes integration into machines and vehicles much easier.

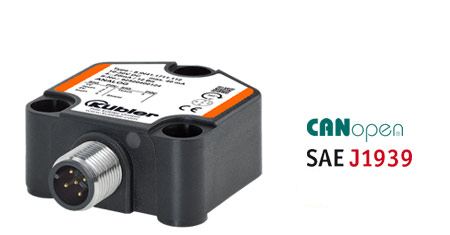

For fieldbus communication

For fieldbus communication

Precise inclination measurement in 2 axes for dynamic applications
Flexible installation position Ideal for tight installation spaces
Measuring range and filter individually configurable
Easy to adapt with Easy-Teach adapter
High protection class IP68/IP69k

To the IN58.6DoF
