INDUSTRIES Wind Turbines Pitch and Azimuth Control

Pitch and azimuth control

Stand perfectly in the wind – with Kübler encoders.

Wind turbines achieve maximum efficiency by precisely positioning the rotor blades and through and optimal wind direction tracking of the gondola. The sturdy and reliable Kübler encoders have been successfully used for these tasks for decades in onshore and offshore wind parks. Renowned manufacturers trust our products and expertise. We gladly also face individual challenges and implement modifications and special solutions quickly and easily. You should choose Kübler too.

Precise and reliable

  • Sturdy encoders – particularly resilient
  • Optimal positioning with precise sensors
  • Reliable pitch and azimuth control
  • Competent advice and high service quality
  • Global presence – in over 50 countries
Request custom solution

Pitch and azimuth control

Stand perfectly in the wind – with Kübler encoders.

Wind turbines achieve maximum efficiency by precisely positioning the rotor blades and through and optimal wind direction tracking of the gondola. The sturdy and reliable Kübler encoders have been successfully used for these tasks for decades in onshore and offshore wind parks. Renowned manufacturers trust our products and expertise. We gladly also face individual challenges and implement modifications and special solutions quickly and easily. You should choose Kübler too.

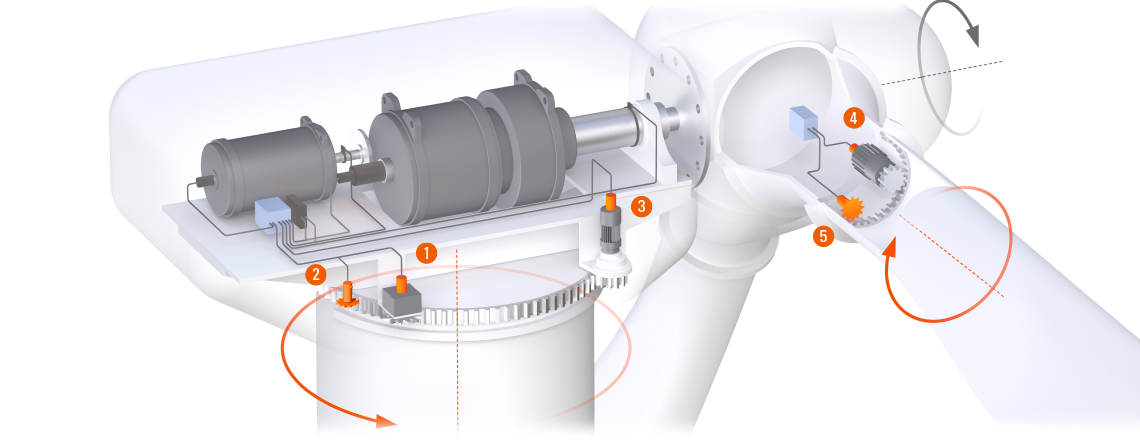

Azimuth control

Incremental and absolute rotary encoders are available to you as a solution for an optimal wind direction tracking of the gondola.
Our encoders are characterized by sturdiness, accuracy and durability.

Azimuth control position detection
1 Azimuth control position detection
  • Multiturn encoder
  • Magnetic – sturdy
  • Dimension of ø 36 mm
  • Total resolution max. 41 bits
To the Sendix M36

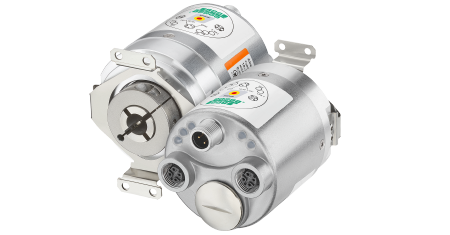

Azimut control position detection
2 Azimut control
position detection
  • PROFIsafe encoders
  • Redundant multiturn gear
  • Dimension of ø 58 mm
To the Sendix S58xxFS3
Azimuth motor control speed measuring
3 Azimuth motor control speed measuring
  • Incremental encoder
  • Optical – precise
  • Dimension of ø 58 mm
  • Resolution max. 5000 ppr.
To the Sendix 5000 / 5020

Pitch control

These encoders are particularly suited for a precise positioning of the rotor blades and thus for more system efficiency.
They stand for maximum sturdiness, accuracy and reliability.

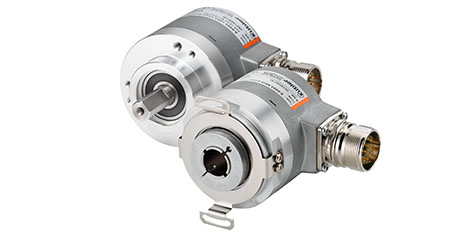

Pitch motor control multiturn encoders
4 Pitch motor control multiturn encoders
  • Mechanical gears
  • Optical – precise
  • Dimension of ø 58 mm
  • Total resolution max. 29 bits
To the Sendix 58xx

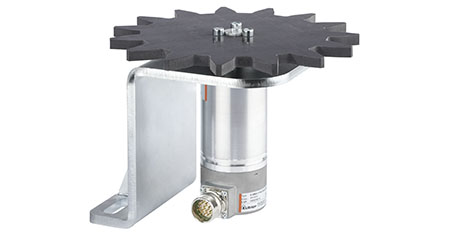

Blade angle monitoring
4 Blade angle monitoring
  • Complete system
  • Multiturn encoder
  • Robust bearing unit
  • Mounting bracket and drive gear wheel
To the Sendix 5863
