INDUSTRIES Mobile Automation Automatic Guided Vehicles (AGV) / Logistics

Solutions for automatic guided vehicles / Logistics

Speed detection and steering angle monitoring with Kübler sensors.

Materials handling vehicles, also called automatic guided vehicles (AGV), have been used successfully in modern logistics centers for many years – a growing trend. Goods and materials of different loads are transported to defined locations, stacked and either put into storage or removed. Logistics centers are only made more efficient if automatic guided vehicles are steered precisely. Sensors play an essential role here. Kübler encoders are successfully used here for speed detection and precise steering angle monitoring. Draw-wire encoders ensure an exact position of the load carrier and thus for a precise measuring of the lift height. Precise and reliable sensors result in an optimal travel speed and flawless storage and retrieval of goods.

Example applications with Kübler products:

Precise and reliable

  • Incremental and absolute rotary encoders
  • Draw wire encoders
  • Optimal travel speed
  • Precise steering angle monitoring
  • Measuring the lift height
Request custom solution

Solutions for automatic guided vehicles / Logistics

Speed detection and steering angle monitoring with Kübler sensors.

Materials handling vehicles, also called automatic guided vehicles (AGV), have been used successfully in modern logistics centers for many years – a growing trend. Goods and materials of different loads are transported to defined locations, stacked and either put into storage or removed. Logistics centers are only made more efficient if automatic guided vehicles are steered precisely. Sensors play an essential role here. Kübler encoders are successfully used here for speed detection and precise steering angle monitoring. Draw-wire encoders ensure an exact position of the load carrier and thus for a precise measuring of the lift height. Precise and reliable sensors result in an optimal travel speed and flawless storage and retrieval of goods.

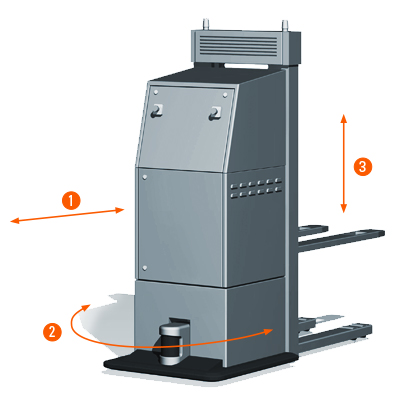

Example applications with Kübler products:
Driving speed measurement
1 Driving speed measurement
  • Incremental encoder
  • Optical scanning
  • Dimension ø 24 mm
To the 2420

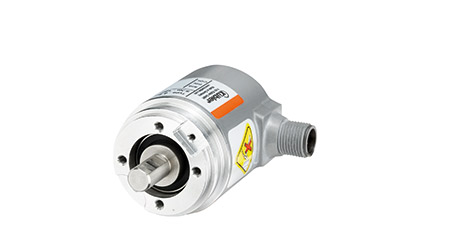

Steering angle monitoring
2 Steering angle monitoring
  • Singleturn encoders
  • Magnetic scanning
  • Dimension ø 36 mm
To the M3668 CANopen

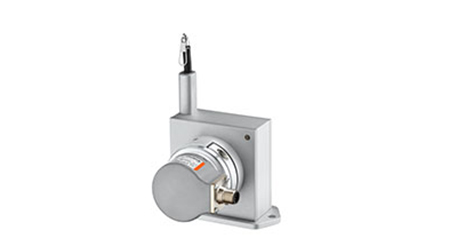

Monitoring the lift height up to 3 m
3 Monitoring the lift height up to 3 m
  • Draw wire encoders
  • High dynamics up to 10 m/s
  • Simple interchangeable installation
To the B80
IO Link encoders for automation tasks
3 IO Link encoders for automation tasks
  • Extremely resistant
  • Magnetic Scanning
  • As singleturn or multiturn
To the M36 / M58

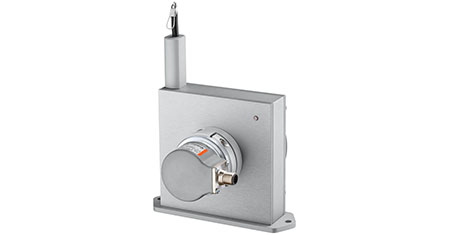

Monitoring the lift height up to 6 m
3 Monitoring the lift height up to 6 m
  • Draw wire encoders
  • Linearity up to ± 0.02%
  • Simple interchangeable installation
To the C120

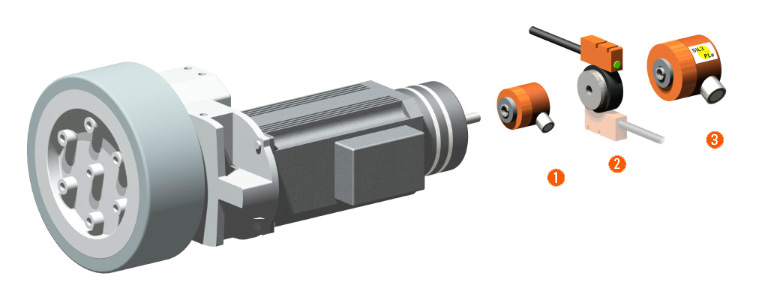

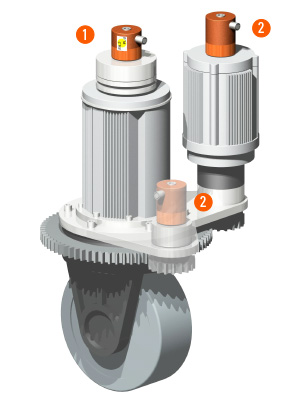

Speed detection with incremental encoders

Various options are available to you: From compact encoders to bearingless encoders as a redundant and space-saving solution, to certified encoders for functional safety. We are also happy to implement modifications and special solutions. We look forward to your inquiry.

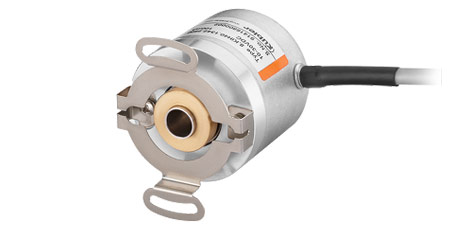

The economical sensor solution
1 The economical sensor solution
  • Economical
  • For small equipment and machines
  • Robust bearing construction
To the KIH40

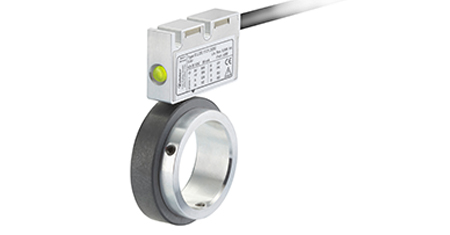

Redundant and space-saving
2 Redundant and space-saving
  • Bearingless encoders
  • Magnetic scanning
  • Resolution max. 3600 ppr.
To the RLI20

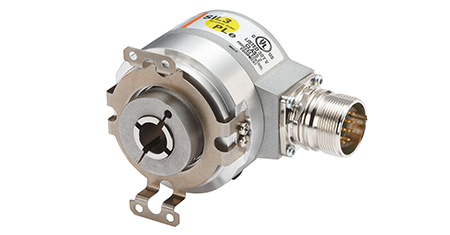

Functional safety up to SIL3//PLe
3 Functional safety up to SIL3//PLe
  • Optical scanning
  • Dimension ø 58 mm
  • Resolution max. 2048 ppr.
To the Sendix 5834FS

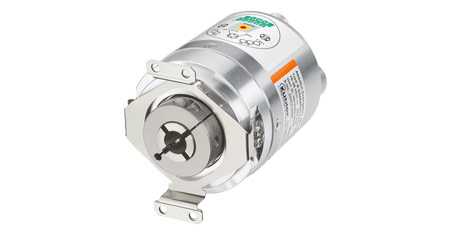

S58 encoder with PROFIsafe interface
3 S58 encoder with PROFIsafe interface
  • Redundant sensor technology
  • High-precision
To the Sendix S5878FS3

Steering angle monitoring and speed detection

Precise steering angle adjustment and optimal travel speed with absolute and incremental encoders. With us, you will find the right solution for your need. We are also happy to implement modifications and special solutions. We look forward to your inquiry.

Functional safety up to SIL3//PLe
1 Functional safety up to SIL3//PLe
  • Optical scanning
  • Dimension ø 58 mm
  • Resolution max. 2048 ppr.
To the Sendix 5834FS

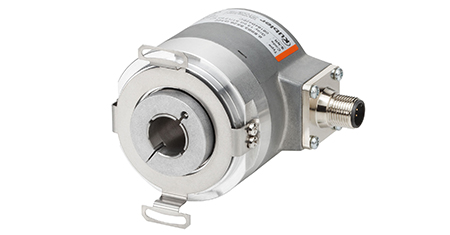

Fieldbus communication
2 Fieldbus communication
  • Multiturn encoder
  • Optical scanning
  • Dimension of ø 58 mm
To the Sendix F5888 CANopen
S58 encoder with PROFIsafe interface
2 S58 encoder with PROFIsafe interface
  • Redundant sensor technology
  • High-precision
To the Sendix S5868FS3
