Solutions for mobile cranes

Positioning, angle measurement and leveling with Kübler sensor solutions.

Mobile cranes are in use everywhere that heavy loads need to be moved – whether on public roads or on rough terrain. Mobile jib cranes must have a high level of reliability and safety. Sensors play an important role here. For any conceivable job, Kübler offers the right solution which is based on robustness, premium quality and a long service life. Our encoders, draw-wire encoders and inclinometers reliably detect any movement, thus ensuring a flawless use of your mobile cranes. Benefit from countless ordering options and the variety of suitable interfaces, from analog to CAN open.

Reliable and sturdy

Encoders, draw-wire encoders & inclinometers
Analog or CANopen interface
High degree of protection up to IP69k
Suitable for outdoor use
Competent advice and high service quality

Request custom solution

Solutions for mobile cranes

Positioning, angle measurement and leveling with Kübler sensor solutions.

Mobile cranes are in use everywhere that heavy loads need to be moved – whether on public roads or on rough terrain. Mobile jib cranes must have a high level of reliability and safety. Sensors play an important role here. For any conceivable job, Kübler offers the right solution which is based on robustness, premium quality and a long service life. Our encoders, draw-wire encoders and inclinometers reliably detect any movement, thus ensuring a flawless use of your mobile cranes. Benefit from countless ordering options and the variety of suitable interfaces, from analog to CAN open.

Turret rotation

1+4 Turret rotation

Absolute encoders multiturn
Optical – precise
Dimension of ø 58 mm

To the Sendix F5868 CANopen

Turret rotation

1+4 Turret rotation

Absolute encoders multiturn
Stainless steel variant
Magnetic – sturdy
Dimension of ø 39 mm

To the Sendix M3668R

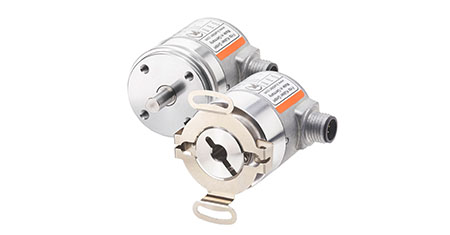

Measuring of the installation angle

2 Measuring of the installation angle

Singleturn encoders
Magnetic scanning
Dimension ø 36 mm

To the Sendix M3658 / M3678

Measuring of the installation angle

2 Measuring of the installation angle

Inclinometer
Measuring range 0 … 360°
Sturdy design

To the IN88 CANopen

Vehicle leveling

3 Vehicle leveling

Inclinometer
Measuring range ±85°
Sturdy design

To the IN88 CANopen

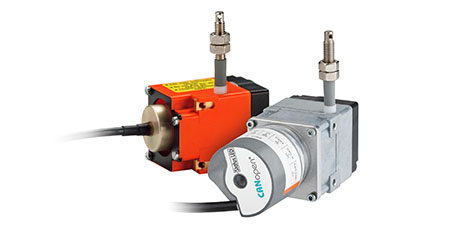

Position of the outrigger up to 2 m

5 Position of the outrigger up to 2 m

Draw wire encoders
Compact design
Analog interface

To the A40 / A41

Position of the outrigger up to 5 m

5 Position of the outrigger up to 5 m

Draw wire encoders
Redundant sensors
Integrated inclinometer

To the C100

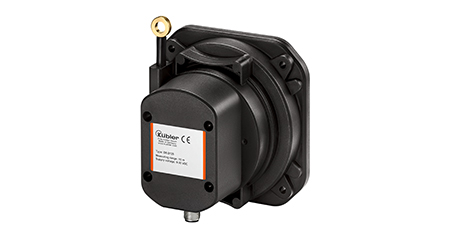

Measuring the boom length

6 Measuring the boom length

Draw wire encoders
Redundant sensors
Integrated inclinometer
Measuring length up to 10 m

To the D125

Measuring the boom length

6 Measuring the boom length

Absolute Encoders Multiturn
Magnetic – sturdy
Dimension of ø 39 mm

To the Sendix M3668 / M3688

VIDEOS

YouTube Video Encoders Draw-wire encoders Inclinometers Slip rings

Position and Motion Sensors and Slip Rings for mobile Cranes - English

Open in YouTube

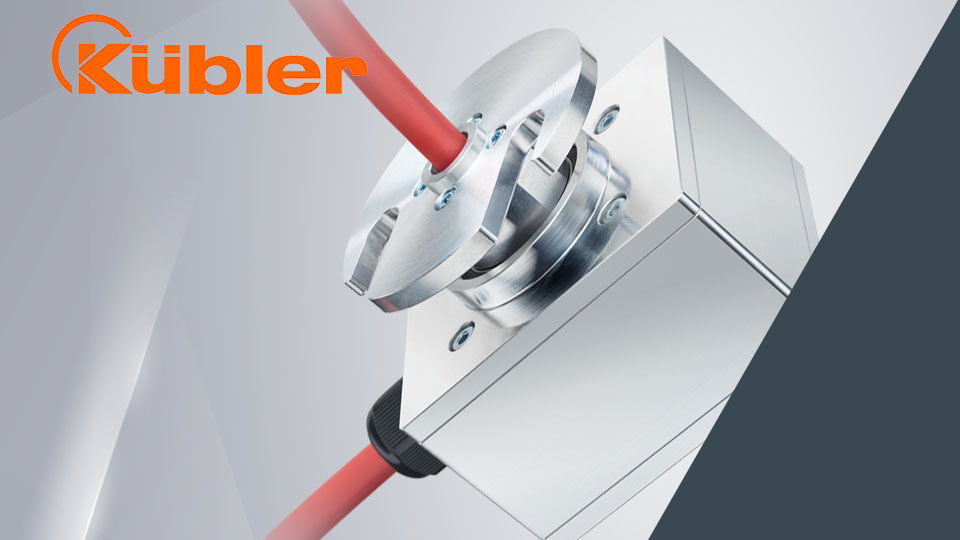

YouTube Video Slip rings
