Solutions for agricultural and forestry machines

Kübler sensors – for flawless continuous use.

Kübler encoders and inclinometers, which meet high requirements, have been successfully used for many years to ensure a safe and precise function of machinery in the field of agriculture and forestry. Inclinometers monitor the horizontal position of the vehicle and issue warnings if the incline is too steep. Encoders measure the adjustment angle as well as the speed and the feed rate of the work equipment. Compact miniature encoders are integrated into the existing design at the customer’s request and make a big difference with intelligent extras.

Example applications with Kübler products:

Reliable sensor solutions

Encoders and inclinometers
Suitable for outdoor use
High degree of protection up to IP69k
Competent advice and high service quality
Global presence – in over 50 countries

Request custom solution

Solutions for agricultural and forestry machines

Kübler sensors – for flawless continuous use.

Kübler encoders and inclinometers, which meet high requirements, have been successfully used for many years to ensure a safe and precise function of machinery in the field of agriculture and forestry. Inclinometers monitor the horizontal position of the vehicle and issue warnings if the incline is too steep. Encoders measure the adjustment angle as well as the speed and the feed rate of the work equipment. Compact miniature encoders are integrated into the existing design at the customer’s request and make a big difference with intelligent extras.

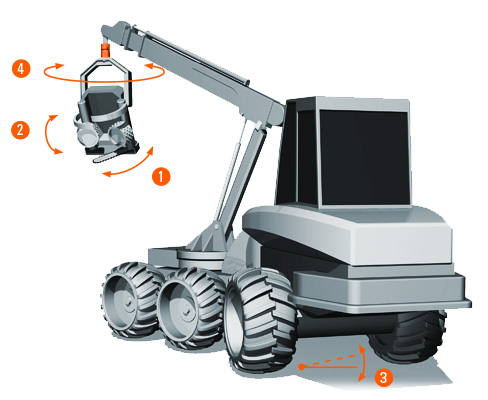

Example applications with Kübler products:

Absolute measuring of the saw blade adjustment angle

1 Absolute measuring of the saw blade adjustment angle

Multiturn encoder
Magnetic scanning
Dimension of ø 39 mm

To the Sendix M3668 / M3688

Feed speed and position

2 Feed speed and position

Incremental encoder
Optical scanning
Dimension ø 50 mm

To the Sendix 5000

Vehicle leveling – dynamic, precise

3 Vehicle leveling – dynamic, precise

Inclinometer
Measuring range ±85°
Sturdy design

To the IN71

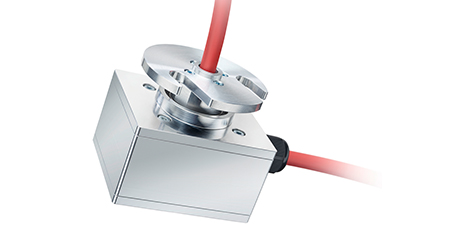

Transmission of load, data and signals

3 Transmission of load, data and signals

Custom slip ring solution
Compact and robust
Field bus and Ethernet communication
