PRODUCTS MEASUREMENT Linear Measurement Radarsensors

Precise radar sensors for demanding and complex environments

Reliable distance, position and level measurement as well as precise object detection - enhanced by system solutions for profile measurement and the monitoring of minimal distance changes in the µm range.

The Kübler radar sensors use the latest FMCW radar technology for precise measurements in the µm range at a high measurement rate of up to 500 Hz. This fast measurement rate enables real-time monitoring and control, which increases efficiency and reaction speed in dynamic environments.


The measuring range of up to 40 m and the small blind zone of just 0.1 m offer maximum flexibility for applications in the steel industry, logistics, mobile automation and agricultural technology. The narrow aperture angle of just +/-1.5° guarantees focused measurements that deliver maximum accuracy even in demanding environments - ideal for complex applications such as condition monitoring and condition monitoring of machines or bridges.


Thanks to innovative accessories and user-friendly graphical user interface technology, the sensors can be easily adapted and integrated to meet specific requirements. Users benefit from simple implementation and customized solutions that promote efficiency and cost reduction.

Robust. Precise. Compact.

  • Insensitive to dust, wind, rain, fog, temperature fluctuations and ambient light
  • Maximum focusing for precise measurement
  • Contactless measurement and wide measuring range for flexible use
  • Simple commissioning thanks to graphical user interface

Precise radar sensors for demanding and complex environments

Reliable distance, position and level measurement as well as precise object detection - enhanced by system solutions for profile measurement and the monitoring of minimal distance changes in the µm range.

The Kübler radar sensors use the latest FMCW radar technology for precise measurements in the µm range at a high measurement rate of up to 500 Hz. This fast measurement rate enables real-time monitoring and control, which increases efficiency and reaction speed in dynamic environments.

The measuring range of up to 40 m and the small blind zone of just 0.1 m offer maximum flexibility for applications in the steel industry, logistics, mobile automation and agricultural technology. The narrow aperture angle of just +/-1.5° guarantees focused measurements that deliver maximum accuracy even in demanding environments - ideal for complex applications such as condition monitoring and condition monitoring of machines or bridges.

Thanks to innovative accessories and user-friendly graphical user interface technology, the sensors can be easily adapted and integrated to meet specific requirements. Users benefit from simple implementation and customized solutions that promote efficiency and cost reduction.

Distance measurement, position monitoring, object detection and collision avoidance

Rely on Kübler radar sensors - with a selection of opening angles, you will find the ideal solution for your industrial application, whether for indoor or outdoor use.

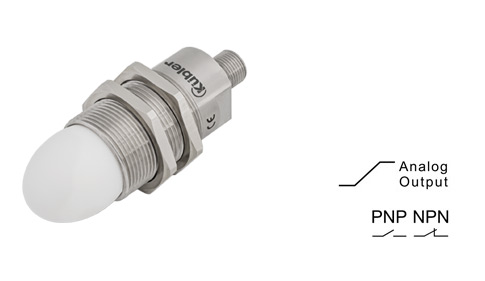

Wide opening angle - maximum coverage in all applications Versatile
Wide opening angle - maximum coverage in all applications
  • Opening angle: ±8° (16°)
  • Measuring range: up to 30 m
  • Linearity: ±10 mm
  • Repeat accuracy: ±2 mm
  • Measuring rate: 100 Hz
To the RAD51C
Narrow aperture angle - large measuring range for precise detection Focused
Narrow aperture angle - large measuring range for precise detection
  • Opening angle: ±3° (6°)
  • Measuring range: up to 40 m
  • Linearity: ±5 mm
  • Repeat accuracy: ±1 mm
  • Measuring rate: 100 Hz
To the RAD51D

Level measurement / level monitoring

Kübler radar sensors offer precise measurements and high speed, even in extreme environments. They are ideal for high-temperature applications and can be used in a variety of ways with suitable accessories.

Universally applicable Versatile
Universally applicable
  • Opening angle: ±3° (6°)
  • Measuring range: up to 40 m
  • Linearity: ±5 mm
  • Repeat accuracy: ±1 mm
  • Measuring rate: 100 Hz
To the RAD51D

System solutions for precise profile measurements with radar sensors

Customized Kübler radar sensors - combined with optimal accessories and control concept - for maximum performance and reliability even under extreme environmental conditions.

Kübler radar sensors enable precise width and thickness measurement of slabs, steel beams, long and flat steel - ideal for use in hot and cold rolling mills. Even in the presence of smoke, steam, heat or dirt, they deliver stable measurement results, reduce rejects and cut your production costs in the long term.

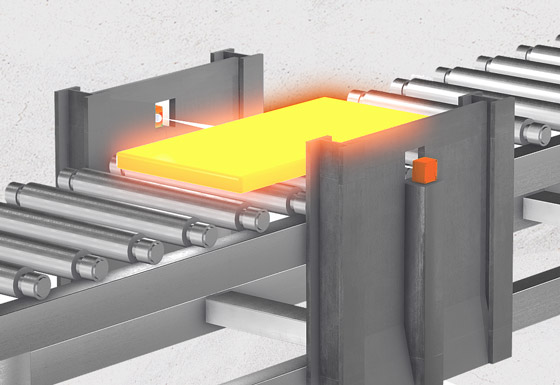

Width measurement in steel production

Width measurement in steel production

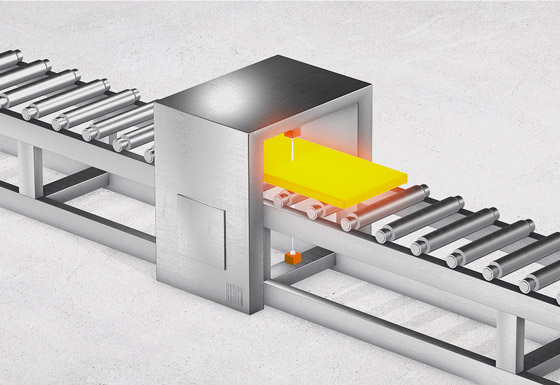

Thickness measurement in steel production

Thickness measurement in steel production
